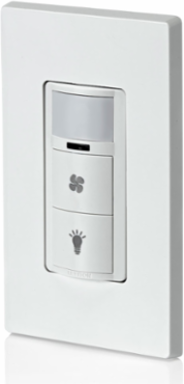

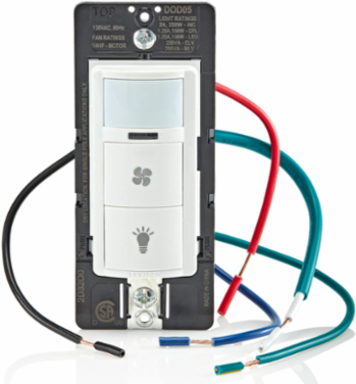

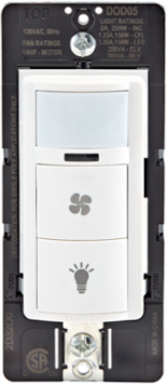

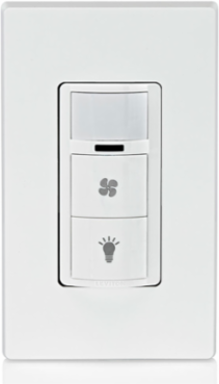

Leviton DOD05-1LW Decora In-Wall Occupancy Sensor & Fan Switch, 1/4 HP, Single Pole, 900 Sq Ft Coverage
- MPN: DOD05-1LW
- UPC: 078477985502
- PPN: LEV-DOD05-1LW
CAD
$114.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements California Title 24, Part 6, Automatic-off Controls and IECC – White
Features
- Ideal for Bathroom, basement, laundry room and home spa
- Two single pole switches, one motion sensor switch with light icon for auto ON/auto OFF and second switch with fan icon to control exhaust fans or other loads for manual ON/OFF control, or use as a countdown timer
- Low profile design blends in with walls for a discreet appearance

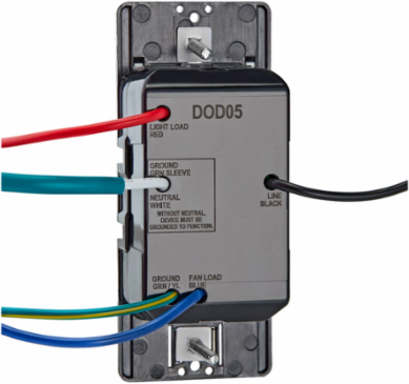

- For use in any home, new or old - can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
- Zero Cross turn-on technology extends the life of switching relays

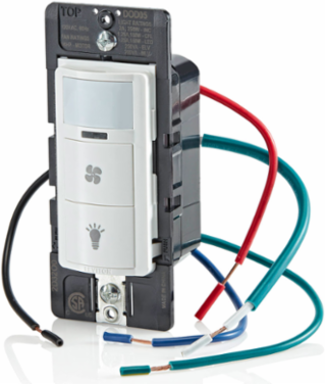

- Leaded terminals for easier installation
- Program settings without removing the wallplate or faceplate
- Can be used to comply with the requirements of California Title 24, Part 6, Automatic-off Controls and IECC
- Color change kits are available in Black, Brown, Gray, Ivory, Light Almond and White (DHDKT-00x)
- Five-Year Limited warranty Sensor (Light Icon)
- CONVENIENT – Sensor switch automatically turns light on and off based on motion. It can be set to vacancy (manual-on) switching. Fan switch can be manually turned on/off or set as countdown timer for 15, 30 or 45 minutes
- EASY TO INSTALL – Slim profile fits in most wallboxes
- FLEXIBLE – Can be installed with or without a neutral wire
- VERSATILE – Can replace a combination switch for separate control of lighting and fan
- PRACTICAL – Perfect for bathroom, basement, laundry room and spa
- STYLISH – Easily change the color using DHDKT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Adjustment | Programmable |
|---|---|
| Color | White |
| Device Type | Sensor |
| Grade | Residential |
| Load Rating | Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive |
| Neutral | Optional |
| Sensor Technology | Passive Infrared |
| Style Name | Decora |
| Switch Type | Single-Pole / Single Pole |
| Voltage | 120 VAC |
| Warranty | 5-Year Limited |
| Auto-ON/Auto-OFF | Yes |
|---|---|
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Dimensions | W 1.73" X D 0.95" X H 4.13" |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Power Consumption | <0.5 Watts |
| Sensor Type | Occupancy |
| Switch | Relay |
| Time Delay | 1M, 5M, 10M or 20M |
| Wallplate | Not Included |
| Wiring | Ground or Neutral Required |
