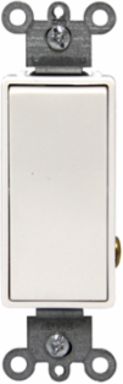

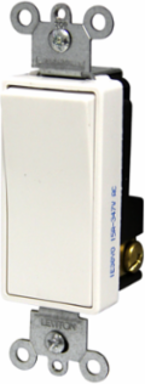

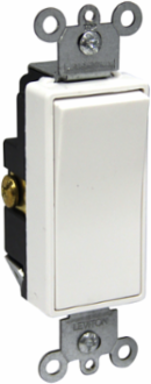

Leviton 5691-CW Decora Plus Single-Pole Rocker Switch, 15 Amp, 347 Volt AC, Self-Grounding, Commercial Grade
Leviton 5691-CW Decora Plus Single-Pole Rocker Switch, 15 Amp, 347 Volt AC, Self-Grounding, Commercial Grade
- MPN: 5691-CW
- PPN: LEV-5691-CW
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$11.50/ EA
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA C22.2 No. 111
- File #152105
Operating Temperature-40°C to 65°C
FlammabilityRated V-2 per UL 94
Material Specifications
- Function
- Single-Pole
- Grade
- Commercial Specification Grade
- Strap Material
- Steel
- Body Material
- Thermoplastic
Feature 4Canadian
BrandDecora Plus
Device TypeRocker Switch
Actuator MaterialThermoplastic
Mechanical Specifications
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Termination
- Back or Side Wire
Product IDStamped on Strap
Torque Range12-14 inch pounds
Product Features
- Function
- Single-Pole
- Grade
- Commercial Specification Grade
- Country Of Origin
- Please Contact Customer Service.
Feature 4Canadian
BrandDecora Plus
Device TypeRocker Switch
Warranty
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Endurance
- 50,000 cycles minimum
- Grounding
- Self-Grounding
Warranty10-Year Limited
Temperature RiseMaximum 30 degrees C rise
Voltage347 VAC
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
- Terminal Accom.
- 14-#10 AWG back wired; #14-#12 AWG side wired
- Operating Temperature
- -40°C to 65°C
- Terminal ID
- Brass-Hot (If Applicable) Black-Hot White-Neutral Green-Gnd
Product IDStamped on Strap
Torque Range12-14 inch pounds
TerminationBack or Side Wire
Electrical Specifications
- Amperage
- 15 A
- Temperature Rise
- Maximum 30 degrees C rise
- Strap Material
- Steel
- Voltage
- 347 VAC
- Overload UL20 Test
- 100 cycles of OL at 4.8 times rated current
Dielectric VoltageWithstands 1500V for 1 minute
Endurance50,000 cycles minimum
Body MaterialThermoplastic
GroundingSelf-Grounding
Actuator MaterialThermoplastic
