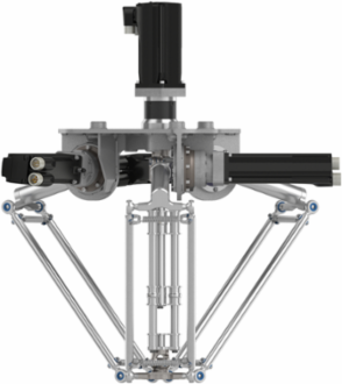

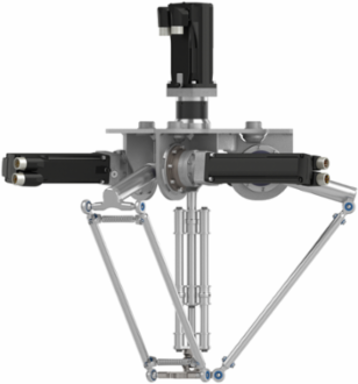

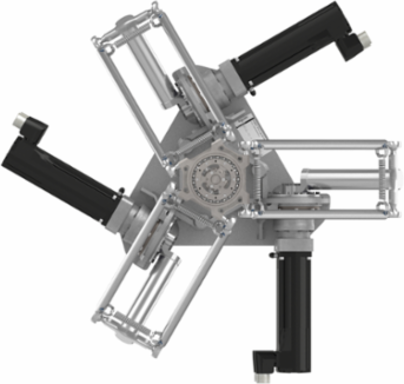

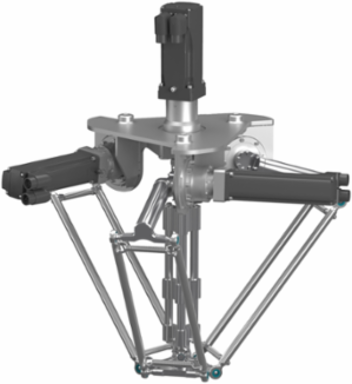

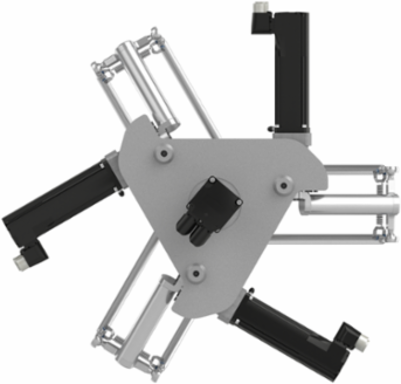

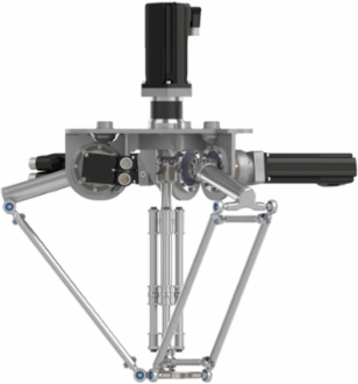

Schneider Electric VRKP0S0RNC00000 Delta 3 Robot 4-Axis 10 kg Load, 0-400 mm Travel, 27.6 kg
- MPN: VRKP0S0RNC00000
- PPN: SCH-VRKP0S0RNC00000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for precision and reliability, the Delta 3 Robot from Schneider Electric is a 4-axis robotic solution capable of handling loads up to 10 kg, making it a versatile choice for various automation tasks. With a travel range of 0 to 400 mm, it offers exceptional maneuverability, enabling efficient operation in compact environments. Weighing in at 27.6 kg, this robust robot is engineered for performance, ensuring that it can seamlessly integrate into diverse industrial applications and enhance your operational efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Complementary Attributes
- Maximum Acceleration
- 125 m/s² at 1 kg120 m/s² at 1.5 kg
Maximum Actuation Speed6 m/s
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Operating Travel
- 0-400 mm horizontal, 0-144 mm vertical
- Carbon Footprint Of The Distribution Phase [A4]
- 6.0642051282, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.9668141026, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 15 545 kg CO2 eq., 15545.346845914
- Local Publishable Date
- 2026-04-30
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503015EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Design
- compact
- Device Short Name
- P0
- Horizontal Distance
- 0-400 mm
- Operating Position
- rotational 360°
- Product Or Component Type
- delta 3 robot
- Repeat Accuracy
- 0.05 mm
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 15 761 kg CO2 eq.
- Number Of Arms
- 3
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 3879.85
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Permanent Permissible Load0-, 0- 0-400 mm 144 mm, 10 kg
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.2156435897
Carbon Footprint Of The Manufacturing Phase [A1 To A3]205 kg CO2 eq., 205.2875641026
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Compositionwith motor
Environmental Characteristicnormal environment
Number Of Axis3-3
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium P, T
ReturnabilityYes
Sustainable PackagingNo
Vertical Distance0-144 mm
Pep CodeENVPEP1503015EN
Pep Verification Date2020-12-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh31729.174
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Package Weight(Lbs)103.400 kg
Warranty (In Months)18
Customs Code8479500000
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 15760.8810728371
- Environmental Disclosure
- ENVPEP1503015EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- SH3 motors
- Pep Code
- ENVPEP1503015EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1503015EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-12-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- delta 3 robot
Range Of ProductLexium P, T
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
