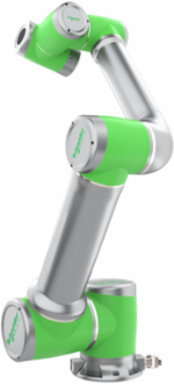

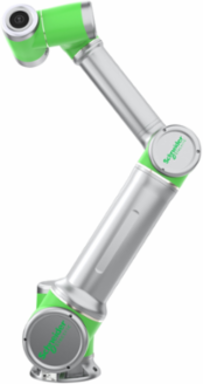

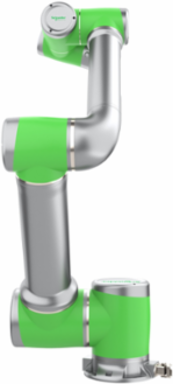

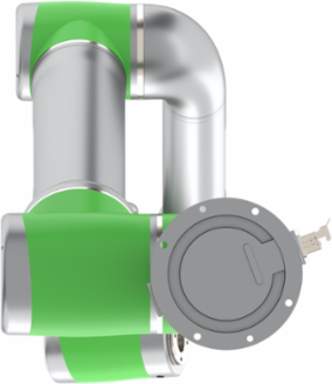

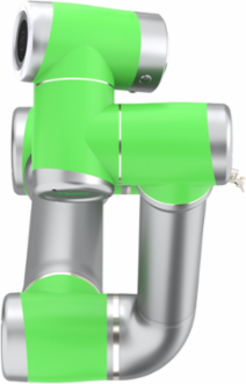

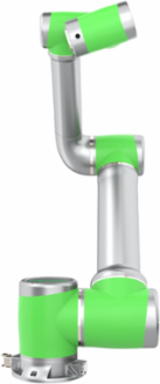

Schneider Electric LXMRL18S0000 collaborative robot, Lexium Cobot, maximum payload 18kg

MPN: LXMRL18S0000
PPN: SCH-LXMRL18S0000
UNSPSC: 26111527

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

collaborative robot, Lexium Cobot, maximum payload 18kg

Features

Streamline production operations with 6 degrees of freedom
Easy learning by mimicry, easy programming with tablet
Reduces the workload of workers
Easily moved, re-installed and reprogrammed
Can be integrated into multiple projects and not limited to a single task

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Physical Attributes

Cable Length	6 m

Complementary Attributes

Maximum Load	18 kg
Rated Voltage	24 V

Maximum Speed Of The Tool End	3.5 m/s

Important Information Attributes

Angular Speed	120°/s joint 1 +/- 360°120°/s joint 2 -85, +265°, 180°/s joint 3 +/- 175°, 180°/s joint 4 -85, +265°, 180°/s joint 5 +/- 360°, 180°/s joint 6 +/- 360°
Marking	CE, KC, TÜV
Local Data Status	Publishable
Pre Comm Date	2023-08-23
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Material	aluminium
Number Of Axis	6
Power Consumption In W	600 W
Product Or Component Type	collaborative robot
Returnability	Yes
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Connectivity To Devices	ipad ios app, android app
Permanent Permissible Load	0-5 kg 0-626 mm0-7 kg 0-626 mm0-12 kg 0-626 mm0-18 kg 0-626 mm0-3 kg 0-819 mm0-5 kg 0-819 mm0-7 kg 0-819 mm0-12 kg 0-819 mm0-18 kg 0-819 mm0-3 kg 0-954 mm0-5 kg 0-954 mm0-7 kg 0-954 mm0-12 kg 0-954 mm0-18 kg 0-954 mm0-3 kg 0-1073 mm0-5 kg 0-1073 mm0-7 kg 0-1073 mm0-12 kg 0-1073 mm0-18 kg 0-1073 mm, 0-3 kg 0-626 mm
Local Publishable Date	2026-01-12
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Service Catalog Item	Finished good
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2209025EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2247
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Diameter	188 mm
Mounting Position	any position
Operating Finger Radius	1073 mm
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Lexium Cobot
Screw Type	M8
Technology Type	graphical drag & drop
Customs Code	8479500000

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-50 °C
Environmental Disclosure	ENVPEP2209025EN
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2209025EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2209025EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
