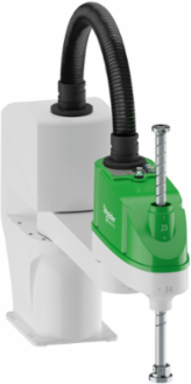

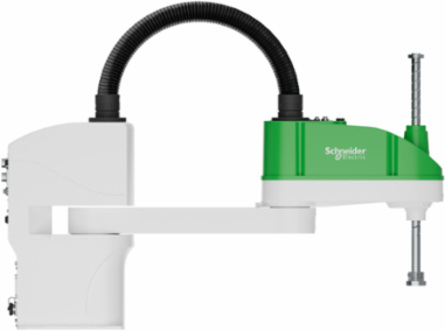

Schneider Electric LXMRSP0670300 Scara robot, Lexium Scara, 700mm arm, 300mm
- MPN: LXMRSP0670300
- PPN: SCH-LXMRSP0670300
- UNSPSC: 26111527
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This robot belongs to the Lexium SCARA robot range. It is a high-speed industrial robot with high movement accuracies. Its work area is 700mm, its stroke length is 300mm, its maximum payload capacity is 6kg and its communication is via a Sercos 3 fieldbus. It is designed to improve productivity and efficiency in manufacturing and assembly processes. The working range of the first axis is 130degrees, second axis is 149degrees, third axis is 360degrees. The maximum speeds are 8450mm per second for axes 1 and 2 combined, 1100mm per second for axis 3, and 2150deg per second for axis 4. It weighs 29kg. It is intended for industrial applications such as Assembly, Loading and unloading, Pick-and-place, Packaging, and Material handling. This SCARA robot comply with the CE and UKCA certifications. It is compatible with LMC402, LMC802, and LMC902 Motion controllers and is configurable with ESME Machine Expert software. it is sold individually per package. This robot is mounted on the ground, on its base, with 6 fixing points. The Lexium SCARA, with its built-in controller and precise tracking mechanisms, offers an all-in-one ultra-compact, high-speed, and precise robotic system. The SCARA robot range expands the industrial robotics portfolio.
Features
- Seamlessly integrates into existing machines or production systems with minimal downtime
- Maximizes footprint by minimizing mounting space and electrical cabinet
- With integrated motors and controller, it simplifies installation, reduces wiring, and saves space
- Includes preventive maintenance, on-site or remote technical assistance, spare parts management, extended warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Weight | 49870 g |
|---|
Complementary Attributes
| Maximum Actuation Speed | 8450 mm/s J1+J21100 mm/s J3 |
|---|---|
| Rated Power In W | 0.9 kW |
| Maximum Power | 2 kW |
|---|
Important Information Attributes
| Operating Travel | 0-700 mm horizontal, 0-300 mm vertical |
|---|---|
| Work Space | J1: +/- 130 °, J2: +/- 149 °, J3: 300 mm, J4: +/- 360 ° |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 49 kg CO2 eq., 48.635384861081874 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 401 kg CO2 eq., 400.9074251572576 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Dangerous Goods Code | LITHIUM ION BATTERIES IN EQUIP. BAT ≤ 100Wh AND ≤ 2 Battery in Package |
| Angular Speed | 2150 °/s J4 |
| Inertia | 0.01 kg.m² J4 |
| Noise Level | 70 dB |
| Operating Position | rotational 360° |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium SCARA |
| Resistance To Fast Transients | 2 kV |
| Rotor Inertia | 0.12 kg.m² J4 |
| Sustainable Packaging | No |
| Database Version | 2023-02 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Repeat Accuracy | +/- 0.02 mm J1, +/- 0.02 mm J1, +/- 0.02 mm J2, +/- 0.02 mm J2, +/- 0.01 mm J3, +/- 0.01 mm J3, +/- 0.01 ° J4, +/- 0.01 ° J4+/- 0.02 mm J1, +/- 0.02 mm J1, +/- 0.02 mm J2, +/- 0.01 mm J3, +/- 0.01 mm J3, +/- 0.01 ° J4, +/- 0.01 ° J4 |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 73.7948140858141, 74 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 24.40583640277943, 24 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 3 860 kg CO2 eq., 3859.716037531958 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2405024EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2423 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Environmental Characteristic | normal environment |
| Mounting Mode | tabletop |
| Number Of Axis | 4 |
| Permanent Permissible Load | 6 kg |
| Product Or Component Type | SCARA robot |
| Resistance To Electrostatic Discharge | 4 kV |
| Returnability | No |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 4 407 kg CO2 eq. |
| Data Source | extrapolated product |
| Customs Code | 8479500000 |
| Functional Unit Description | To pick and place operations in material handling, parts loading/unloading with an active mode 50% of the time with the power use of 200 W and in stand-by mode 30% of the time with the power use of 25 W and off mode 20% of the time with power use 0 W for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 9417 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Operating Altitude | > 1000...1500 m 10 % derating of performance, > 1000...1500 m 10 % derating of performance, > 1500...2000 m 20 % derating of performance, > 1500...2000 m 20 % derating of performance, 3280.84 ft (1000 m) without derating, > 1000...1500 m 10 % derating of performance, > 1000...1500 m 10 % derating of performance, > 1500...2000 m 20 % derating of performance, > 1500...2000 m 20 % derating of performance |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-40 °C |
| Environmental Disclosure | ENVPEP2405024EN |
| Ip Degree Of Protection | IP20IP65 with conformity kit) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2405024EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Transport Temperature | -20-60 °C, -20-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 4407.459498038891 |
| Circularity Profile | ENVEOLI2405024EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-07-10 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | SCARA robot |
|---|
| Range Of Product | Lexium SCARA |
|---|
ETIM
| ETIM 8 | EC003245 |
|---|---|
| ETIM 10 | EC003245 |
| ETIM 9 | EC003245 |
|---|
Input Attributes
| Input Voltage | 170...250 V AC without derating100...170 V AC with derating of 15% |
|---|
