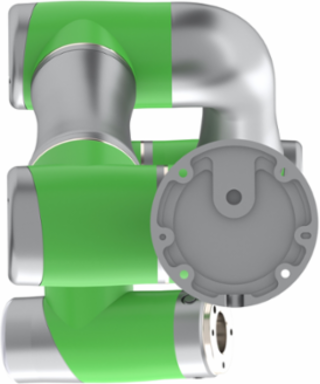

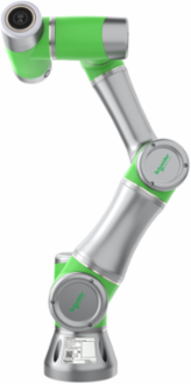

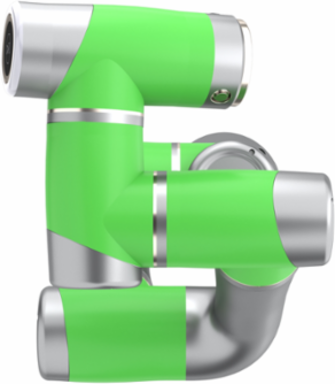

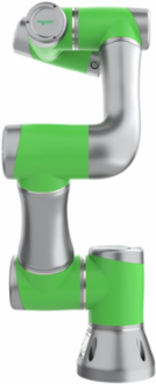

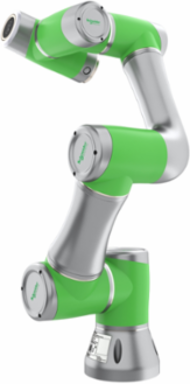

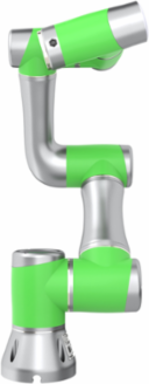

Schneider Electric LXMRL03S0000 Lexium Cobot Collaborative Robot, 3 kg Payload, IP54, 12 kg Weight
- MPN: LXMRL03S0000
- PPN: SCH-LXMRL03S0000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lexium Cobot from Schneider Electric is engineered to excel in collaborative environments, offering a payload capacity of 3 kg while maintaining a lightweight structure of only 12 kg. This versatile robot is designed with an IP54 rating, ensuring reliable protection against dust and water spray, making it suitable for a variety of industrial applications. Its collaborative design allows for seamless interactions with human operators, enhancing productivity and safety on the shop floor. With its advanced technology and robust performance, this collaborative robot stands out as an effective solution for modern manufacturing and automation needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, China, Germany, France, United States
Physical Attributes
- Cable Length
- 6 m
Complementary Attributes
- Maximum Load
- 3 kg
- Rated Voltage
- 24 V
Maximum Speed Of The Tool End1.5 m/s
Important Information Attributes
- Persona Type Ids
- EU, OM
- Angular Speed
- 180°/s joint 1 +/- 360°180°/s joint 2 -85, +265°180°/s joint 3 +/- 175°220°/s joint 4 -85, +265°, 220°/s joint 5 +/- 360°, 220°/s joint 6 +/- 360°
- Marking
- CE, KC, TÜV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3 kg CO2 eq., 2.5305
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 200 kg CO2 eq., 200.42
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Service Catalog Item
- Finished good
- Distribution Carbon Footprint
- 1.815
- End Of Life Carbon Footprint
- 2.5305
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2209025EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2247
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Diameter
- 129 mm
- Maximum Speed Of The Tool End
- 1.5 m/s
- Number Of Axis
- 6
- Permanent Permissible Load
- 0-3 kg 0-626 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Lexium Cobot
- Screw Type
- M8
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 4 068 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Recyclability Potential In %
- 85
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle
- 16.814
- Air Pollution (M3) Total Life Cycle
- 191030
- Air Pollution (M3) Distribution [A4]
- 77.209
- Air Pollution (M3) Operational Energy Use [B6]
- 166250
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 45777
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 25.499
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 43845
- Global Warming (Kg.Equivalent.Co2) Total Life Cycle
- 4067.6
- Global Warming (Kg.Equivalent.Co2) Distribution [A4]
- 1.815
- Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]
- 2.5305
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 453.92
- Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
- 14.798
- Materials For Energy Recovery (Kg) End Of Life [C1-c4]
- 0.4342
- Materials For Recycling (Kg) Manufacturing [A1-a3]
- 1.3165
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 10.244
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 39.5
- Non-hazardous Waste Disposed Of (Kg) Total Life Cycle
- 14655
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 14402
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 9.6184
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2509.6
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 1.4613
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 18.85
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 2641.7
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 1.4635
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 18.87
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 132.11
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 9810
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 9.0487
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2500.5
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 1.4613
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 18.85
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 39.011
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 93.102
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 9810
- Water Pollution (M3) Total Life Cycle
- 174060
- Water Pollution (M3) Distribution [A4]
- 298.47
- Water Pollution (M3) Operational Energy Use [B6]
- 159390
- Customs Code
- 8479500000
Persona Type NamesEnd User, Original Equipment Manufacturer
Connectivity To Devicesipad ios app, android app
Carbon Footprint Of The Distribution Phase [A4]1.815, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.10841, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 863 kg CO2 eq., 3862.7
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Manufacturing Carbon Footprint200.42
Use Carbon Footprint3862.7
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Materialaluminium
Mounting Positionany position
Operating Finger Radius626 mm
Power Consumption In W150 W
Product Or Component Typecollaborative robot
ReturnabilityYes
Software VersionEIME v5.8.1
Technology Typegraphical drag & drop
Pep CodeENVPEP2209025EN
Pep Verification Date2023-05-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo execute the programmed task, robot and the surrounding environment during 10 years with an average power consumption of 150W, in accordance with the relevant standard.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh7884
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Carbon Footprint (Kg Co2 Eq Total Life Cycle)4067.6
Package Weight(Lbs)14.341 kg
Warranty (In Months)18
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]16.113
Air Pollution (M3) Manufacturing [A1-a3]24558
Air Pollution (M3) Installation [A5]4.4177
Air Pollution (M3) End Of Life [C1-c4]133.66
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1889.8
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]1.4528
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]15.22
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]200.42
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]3862.7
Hazardous Waste Disposed Of (Kg) Total Life Cycle470.73
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]2.0138
Materials For Energy Recovery (Kg) Total Life Cycle0.4342
Materials For Recycling (Kg) Total Life Cycle13.621
Materials For Recycling (Kg) Installation [A5]2.0601
Net Use Of Fresh Water (M3) Total Life Cycle14046
Net Use Of Fresh Water (M3) Operational Energy Use [B6]14006
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]252.68
Radioactive Waste Disposed Of (Kg) Total Life Cycle9.7711
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle69893
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]25.629
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]67337
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle79835
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]25.663
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]77147
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle9942.2
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]0.0342
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle9.0487
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle69883
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]25.629
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]67337
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle39.011
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle9903.2
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]0.0342
Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle1.1032
Water Pollution (M3) Manufacturing [A1-a3]14179
Water Pollution (M3) Installation [A5]16.999
Water Pollution (M3) End Of Life [C1-c4]178.09
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 4067.6
- Circularity Profile
- ENVEOLI2209025EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-05-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP2209025EN
Ip Degree Of ProtectionIP54
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2209025EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- collaborative robot
Range Of ProductLexium Cobot
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
Output Attributes
- Digital Output Number
- 2
Input Attributes
- Analogue Input Number
- 2
Digital Input Number2
