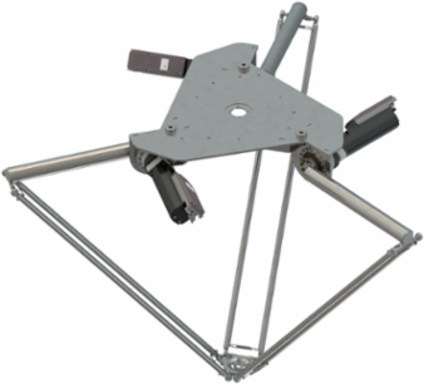

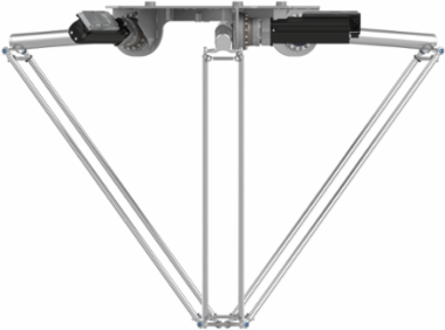

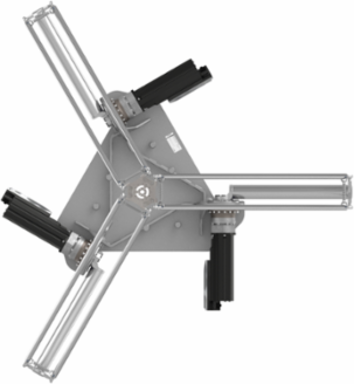

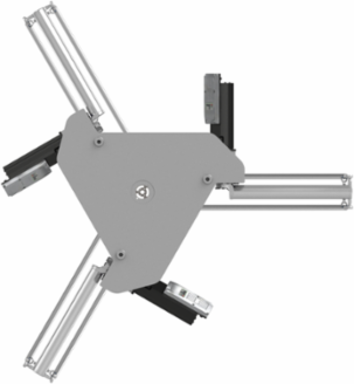

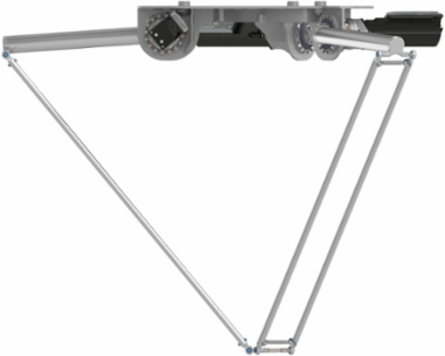

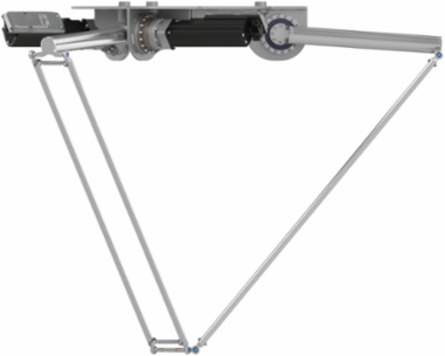

Schneider Electric VRKP6L0FNC00000 Delta 3 robot; P6; 3 to 5 axis; 10 kg permissible load(15 kg with restrictions); 0 to 1600 mm working envelop
- MPN: VRKP6L0FNC00000
- PPN: SCH-VRKP6L0FNC00000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P6 Compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 10kg. It has a 1600mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a fixed axis and is equipped with Lexium 62 ILM integrated drives. It weighs 80kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Complementary Attributes
- Maximum Acceleration
- 80 m/s² at 1 kg60 m/s² at 1.5 kg
Maximum Actuation Speed10 m/s
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Operating Travel
- 0-1600 mm diameter, 0-550 mm vertical
- Carbon Footprint Of The Distribution Phase [A4]
- 9.6769230769, 10 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.5427884615, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 26 424 kg CO2 eq., 26423.7586435522
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - robotics
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503015EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Design
- compact
- Device Short Name
- P6
- Number Of Axis
- 3-3
- Product Or Component Type
- delta 3 robot
- Repeat Accuracy
- 0.1 mm
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 26 768 kg CO2 eq.
- Number Of Arms
- 3
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 6191.25
- Customs Code
- 8479909530
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Permanent Permissible Load0-15 kg 0-400 mm 550 mm, 0-600 mm 550 mm, 0-15 kg 0-600 mm 550 mm, 0-800 mm 550 mm, 0-15 kg 0-800 mm 550 mm, 0-1000 mm 550 mm, 0-15 kg 0-1000 mm 550 mm, 0-1200 mm 550 mm, 0-15 kg 0-1200 mm 550 mm, 0-1400 mm 550 mm, 0-15 kg 0-1400 mm 550 mm, 0-1600 mm 550 mm, 0-15 kg 0-1600 mm 550 mm, 0-, 0- 0-400 mm 550 mm, 10 kg
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.1313461538
Carbon Footprint Of The Manufacturing Phase [A1 To A3]328 kg CO2 eq., 327.5865384615
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Compositionwith motor
Environmental Characteristicnormal environment
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium P, T
ReturnabilityYes
Sustainable PackagingNo
Vertical Distance0-550 mm
Pep CodeENVPEP1503015EN
Pep Verification Date2020-12-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh53932.797
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Package Weight(Lbs)75 kg
Warranty (In Months)18
Water Pollution (M3) Installation [A5]207.5
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 26767.696239706
- Environmental Disclosure
- ENVPEP1503015EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ILM motors
- Pep Code
- ENVPEP1503015EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1503015EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-12-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- delta 3 robot
Range Of ProductLexium P, T
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
