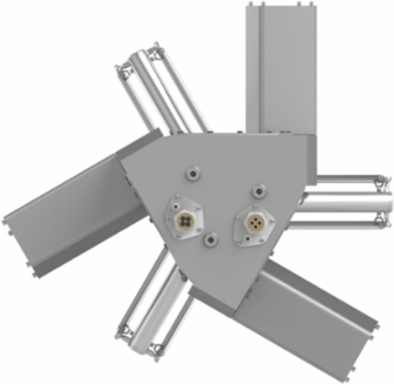

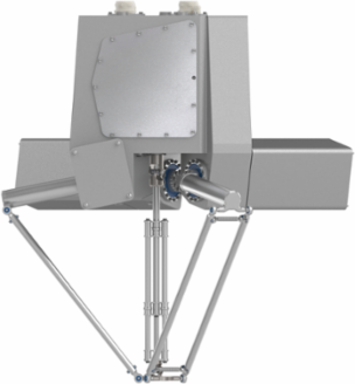

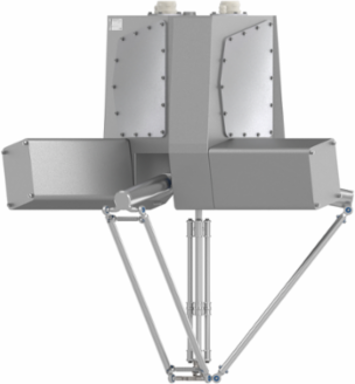

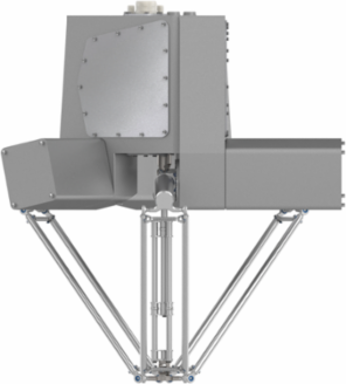

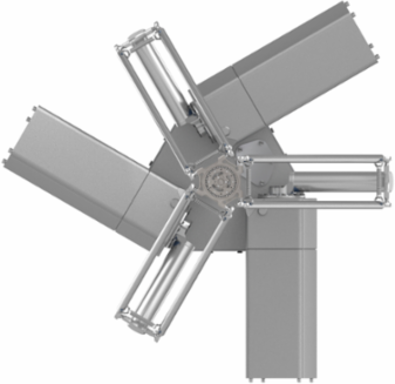

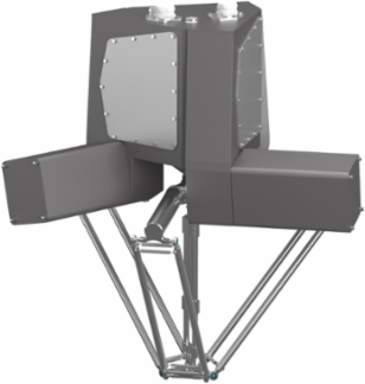

Schneider Electric VRKP2S0RWD00000 Delta 3 robot; P2; 3 to 4 axis; 15 kg permissible load; 0 to 800 mm working envelop
- MPN: VRKP2S0RWD00000
- PPN: SCH-VRKP2S0RWD00000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a standard design which provides 3 to 4 axes. This pick and place robot features 0mm to 800mm horizontal and 0mm to 274mm vertical work envelopes. It offers permanent permissible load of 15kg and maximum actuation speed of 10m/s. It has stainless steel construction. It weighs 110kg. It is suitable for general machine control, packaging machine automation and material handling applications. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Complementary Attributes
- Maximum Acceleration
- 120 m/s² at 1 kg90 m/s² at 1.5 kg
Maximum Actuation Speed10 m/s
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Environmental Characteristic
- normal environment, high pressure cleaner, dust pollution resistance
- Permanent Permissible Load
- 0-10 kg 0-600 mm 274 mm, 0-10 kg 0-800 mm 274 mm, 0-400 mm 274 mm, 0-600 mm 274 mm, 0-800 mm 274 mm, 0-, 0-10 kg 0-400 mm 274 mm, 15 kg
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 11 kg CO2 eq., 10.9915693431
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 611 kg CO2 eq., 611.1206569343
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Composition
- with motor
- Horizontal Distance
- 0-800 mm
- Operating Position
- rotational 360°
- Product Or Component Type
- delta 3 robot
- Repeat Accuracy
- 0.1 mm
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 36 230 kg CO2 eq.
- Number Of Arms
- 3
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8479909530
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Operating Travel0-800 mm horizontal, 0-274 mm vertical
Carbon Footprint Of The Distribution Phase [A4]15.611649635, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.0291788321, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]35 591 kg CO2 eq., 35590.719929222
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - robotics
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1602014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2010
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Designstandard
Device Short NameP2
Number Of Axis3-3
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium P, T
ReturnabilityYes
Sustainable PackagingNo
Vertical Distance0-274 mm
Pep CodeENVPEP1602014EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh72640.734
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Package Weight(Lbs)121.0 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 36230.4729839665
- Environmental Disclosure
- ENVPEP1602014EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- SH3 motors
- Pep Code
- ENVPEP1602014EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1602014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- delta 3 robot
Range Of ProductLexium P, T
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
