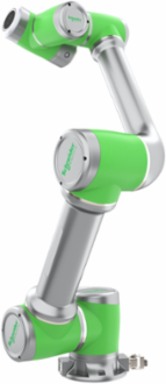

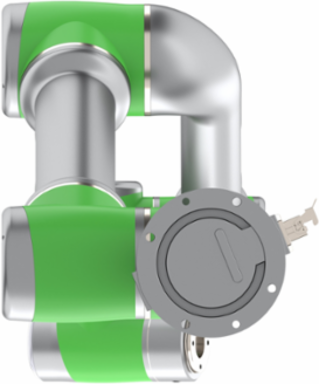

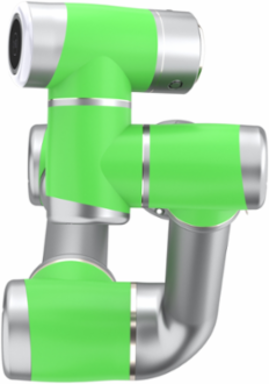

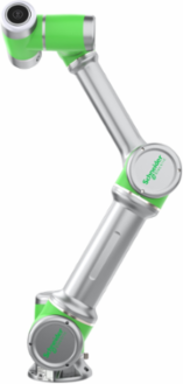

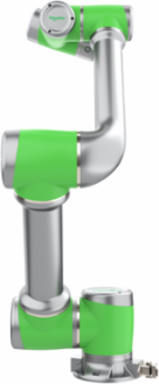

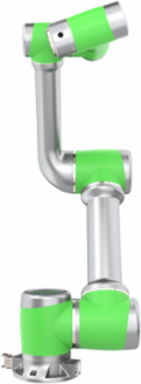

Schneider Electric LXMRL05S0000 collaborative robot, Lexium Cobot, maximum payload 5kg
- MPN: LXMRL05S0000
- PPN: SCH-LXMRL05S0000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
collaborative robot, Lexium Cobot, maximum payload 5kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, China, Germany, France, Singapore
Physical Attributes
- Cable Length
- 6 m
Complementary Attributes
- Maximum Load
- 5 kg
- Rated Voltage
- 24 V
Maximum Speed Of The Tool End3 m/s
Important Information Attributes
- Persona Type Ids
- EU, OM
- Angular Speed
- 180°/s joint 1 +/- 360°180°/s joint 2 -85, +265°180°/s joint 3 +/- 175°, 180°/s joint 4 -85, +265°, 180°/s joint 5 +/- 360°, 180°/s joint 6 +/- 360°
- Marking
- CE, KC, TÜV
- Local Data Status
- Publishable
- Pre Comm Date
- 2023-08-23
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Material
- aluminium
- Mounting Position
- any position
- Operating Finger Radius
- 954 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Lexium Cobot
- Screw Type
- M8
- Technology Type
- graphical drag & drop
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8479500000
Persona Type NamesEnd User, Original Equipment Manufacturer
Connectivity To Devicesipad ios app, android app
Permanent Permissible Load0-5 kg 0-626 mm0-3 kg 0-819 mm0-5 kg 0-819 mm0-3 kg 0-954 mm0-5 kg 0-954 mm, 0-3 kg 0-626 mm
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Service Catalog ItemFinished good
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2209025EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2244
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Diameter158 mm
Maximum Speed Of The Tool End3 m/s
Number Of Axis6
Power Consumption In W350 W
Product Or Component Typecollaborative robot
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2209025EN
Package Weight(Lbs)25.478 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP2209025EN
- Ip Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2209025EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2209025EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- collaborative robot
Range Of ProductLexium Cobot
ETIM
- ETIM 8
- EC003245
ETIM 9EC003245
Output Attributes
- Digital Output Number
- 2
Input Attributes
- Analogue Input Number
- 2
Digital Input Number2
