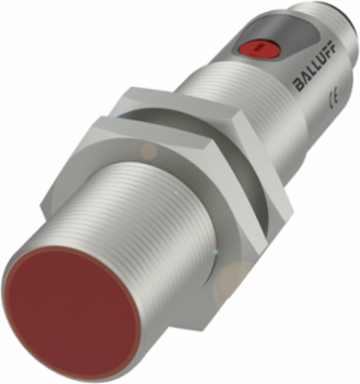

Balluff BOS 18M-NA-RD20-S4 Diffuse Photoelectric Sensor Ø 18 x 75 mm, LED Red Light, 10-30 VDC
- MPN: BOS 18M-NA-RD20-S4
- PPN: BAL-BOS01E6
CAD
$261.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Diffuse Sensor from Balluff exemplifies advanced sensing technology, ideal for a variety of automation and control applications. Featuring a robust brass housing and a glass sensing surface with anti-reflective coating, this photoelectric sensor is designed for durability and precision. With an operating voltage range of 10-30 VDC and a sensing range of up to 600 mm, it delivers reliable performance through its divergent beam characteristic and LED red light indicator. The compact design, measuring Ø 18 x 75 mm, includes a convenient M12x1 connector for easy integration into existing systems, making it a versatile choice for enhancing operational efficiency in industrial environments.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Interface
- NPN Normally open (NO), NPN Normally closed (NC)
- Sensor Type
- Diffuse photoelectric sensor
- Housing Material
- Brass, nickel plated
- Beam Characteristic
- Divergent
- Series
- 18M
- Light Spot Size
- d8 50 mm at 600 mm
- Approval/Conformity
- CE, cULus, EAC, WEEE
Sensing Range0-600 mm, adjustable
Light TypeLED, red light (626 nm)
Dimensionsd8 18 x 75 mm
Material Sensing SurfaceGlass, AR coated
ConnectionConnector, M12x1-Male, 4-pin
Principle of OperationPhotoelectric sensor
Principle of Optical OperationDiffuse sensor, (energetic)
