Balluff

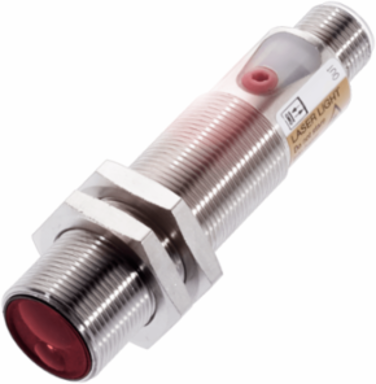

Balluff BOS 18M-PSV-LH22-S4 Diffuse and through-beam sensors BOS 18M-PSV-LH22-S4

Diffuse and through-beam sensors BOS 18M-PSV-LH22-S4
  • MPN: BOS 18M-PSV-LH22-S4
  • PPN: BAL-BOS002K

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$410.93/ EA

Description

Diffuse and through-beam sensors BOS 18M-PSV-LH22-S4

Specifications

Specifications

Series
18M
Interface
PNP Normally open (NO)
Principle of optical operation
Diffuse sensor, Triangulation
Beam characteristic
Focus, typical at 100 mm
Light spot size
0.05 x 0.1 mm at focal point
Connection
Connector, M12x1-Male, 4-pin
Material sensing surface
PMMA
Approval/Conformity
CE, cULus, EAC, WEEE
DimensionØ 18 x 75 mm
Principle of operationPhotoelectric sensor
Special optical featureBackground suppression
Light typeLaser Red light
Range30-150 mm
Housing materialBrass
Operating voltage Ub10-30 VDC
