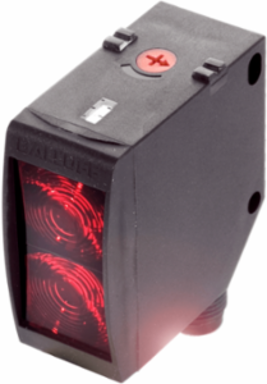

Balluff BOS 23K-PU-RH10-S4 Photoelectric Sensor, Diffuse, 3-800 mm Range, 10-30 VDC
Balluff BOS 23K-PU-RH10-S4 Photoelectric Sensor, Diffuse, 3-800 mm Range, 10-30 VDC
- MPN: BOS 23K-PU-RH10-S4
- PPN: BAL-BOS0178
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$309.25/ EA
Description
The Diffuse and through-beam sensors from Balluff, specifically the BOS 23K-PU-RH10-S4 model, are designed to enhance automation and control processes with precision and reliability. Featuring a compact dimension of 23 x 51 x 52.4 mm, this photoelectric sensor operates on a triangulation principle, allowing for accurate detection within a range of 3 to 800 mm. The sensor utilizes a red LED light with a focused beam characteristic, ensuring effective background suppression and a light spot size of 15 x 15 mm at the focal point, making it ideal for various sensing applications. Constructed with durable PCABS housing and a PMMA sensing surface, it supports a wide operating voltage of 10-30 VDC and is equipped with a 4-pin M12x1 male connector for seamless integration into existing systems. With approvals such as Ecolab, CE, cULus, EAC, and WEEE, this sensor meets stringent industry standards for performance and safety.
Specifications
Specifications
- Series
- 23K
- Interface
- PNP NO/NC
- Principle of operation
- Photoelectric sensor
- Special optical feature
- Background suppression
- Light type
- LED Red light
- Range
- 3-800 mm
- Housing material
- PCABS
- Operating voltage Ub
- 10-30 VDC
Dimension23 x 51 x 52.4 mm
Input functionLight-on/dark-on
Principle of optical operationDiffuse sensor, Triangulation
Beam characteristicFocus, typical at 500 mm
Light spot size15 x 15 mm at focal point
ConnectionConnector, M12x1-Male, 4-pin
Material sensing surfacePMMA
Approval/ConformityEcolab, CE, cULus, EAC, WEEE
