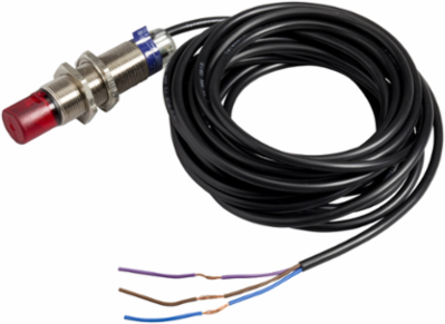

Telemecanique Sensors XUB9APAWL2 Photoelectric sensors XU, XUB, polarised, 90°, Sn 2 m, 12...24 VDC, cable 2 m
- MPN: XUB9APAWL2
- PPN: TES-XUB9APAWL2
CAD
$156.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUB, polarised, 90°, Sn 2 m, 12...24 VDC, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | red polarised reflex |
| Sensor Name | XUB |
| Wiring Technique | 3-wire |
| Detection System | polarised reflex |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 2-2 m polarised reflex need reflector XUZC50 |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Line Of Sight Type | 90° lateral |
| Material | plastic |
| Series Name | general purpose single mode |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
Complementary
| Current Consumption | 35 mA no-load |
|---|---|
| Maximum Delay Response | 1 ms |
| Status Led | 1 LED yellow)output state |
| Lens Material | PMMA |
| Length | 76 mm |
| Maximum Delay Recovery | 1 ms |
| Maximum Sensing Distance | 3 m polarised reflex |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Enclosure Material | PBT |
| Add On Output | without |
| Switching Frequency | <= 500 Hz |
|---|---|
| Diameter | 18 mm |
| Setting-Up | without sensitivity adjustment |
| Maximum Voltage Drop | <1.5 V closed state) |
| Net Weight | 0.04 kg |
| Maximum Delay First Up | 15 ms |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PvR |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CE || UL || CSA |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI111208EN |
