Greenlee DVM-80UVK DigiVolt Digital Voltmeter 80kV, LCD Display, 5V-80kV Voltage Rating
- MPN: DVM-80UVK
- UPC: 783310628286
- PPN: GRN-DVM-80UVK
- UNSPSC: 41113637
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DigiVolt Digital Voltmeter 80kV, LCD Display, 5V-80kV Voltage Rating
Features
- Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add‑on resistors
- Provides consistent high accuracy voltage measurements within 1% of reading
- Auto-ranging, no settings required
- Capacitive test point and peak hold modes
- Auto-shutoff and low battery indicator features
- Versatile for overhead and underground applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Voltmeter
- Voltage Rating
- 5V - 40kV up to 80kV with add-on resistors
- Display
- LCD display
- Dimensions
- 5" W x 4.25" L x 1.38" H (13 cm x 11 cm x 3.5 cm)
- Included

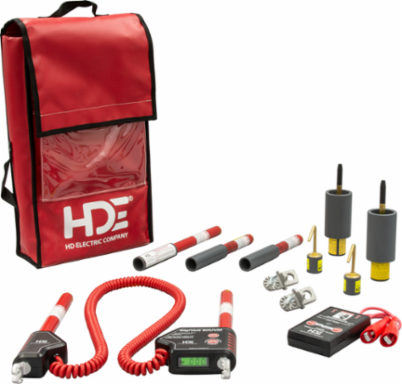

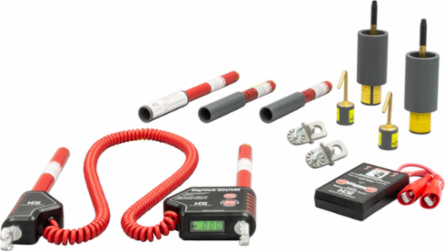

- DVM-80UVM, 025-OLPS-5 overhead brass hook probes (2), R-80 resistor sticks (2), ASP-15/25 UG bushing probes (2), CFT-35 cable fault tester, HAS-2500 universal hot stick adapters (2), PT-5000B Proof Tester proof tester voltmeter tester and B-12 carrying bag
Sub BrandHDE
ModelDVM-80UVM
AccuracyWithin 1% of reading +/- 3 counts (line-to-ground and line-to-line measurements)
Operating Temperature-20°F to +140°F (–29°C to +60°C)
Frequency Rating25–1000Hz AC/DC
Regulations
- REACH Compliant
- Yes
