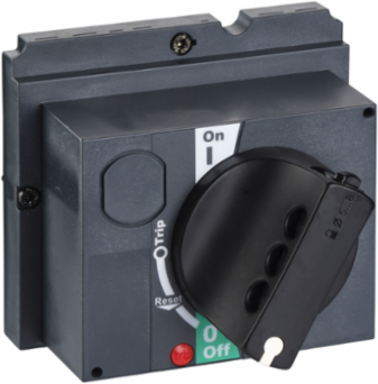

Schneider Electric LV429337 Black Direct Rotary Handle for ComPact NSX 100/160/250, IP40, Padlockable
Schneider Electric LV429337 Black Direct Rotary Handle for ComPact NSX 100/160/250, IP40, Padlockable
- MPN: LV429337
- PPN: SCH-LV429337
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$433.95/ EA
Description
It is a direct rotary handle for Compact NSX 100/160/250, PowerPacT Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Specifications
Environment
- Ip Degree Of Protection
- IP40
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2204005
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2204005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- This product has been switched to new ComPacT range and is no longer commercialized.
Complementary
- Range Compatibility
- ComPact ComPact NSX100 || ComPact ComPact NSX160 || ComPact ComPact NSX250 || EasyPact EasyPact CVS100 || EasyPact EasyPact CVS160 || EasyPact EasyPact CVS250 || PowerPact PowerPact Multistandard
- Rotary Handle Padlocking
- padlock in OFF position || 1 to 3 padlocks
Rotary Handle Mounting Locationfront
Specifications
- Rotary Handle Mounting Style
- direct
- Handle Front Plate Colour
- black
- Product Or Component Type
- rotary handle
Range Of ProductComPact NSX100...250
Handle Colourblack
Accessory / Separate Part Typecontrol accessories
