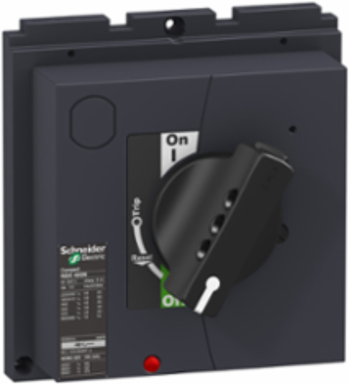

Schneider Electric LV432597 ComPact NSX 400/630 Direct Rotary Handle, IP40, Black Handle
- MPN: LV432597
- PPN: SCH-LV432597
CAD
$750.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Hong Kong, India, United States
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorblack
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Rotary Handle Padlocking
- 1 to 3 padlocks, padlock in OFF position
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.137554250566648
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.824876944358468
- Local Data Status
- Publishable
- Return Indicator
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2537
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- EasyPact CVS400...630
- Rotary Handle Mounting Location
- front
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Handle Front Plate Color
- black
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Rotary Handle for MCCB is to allow the ON, OFF, TRIP, RESET operation of MCCB from the front face of the switchboard for 20 years.& 10& 10IP Class = IP55 (Rotary Handle)
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 65
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0861873422336017, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2034258610546789, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2025-10-18
Stocking FlagY
TraceabilityNo
Weee ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Important MessageThis product has been switched to new ComPacT range and is no longer commercialized.
Product Or Component Typerotary handle
ReturnabilityNo
Rotary Handle Mounting Styledirect
Sustainable PackagingNo
Handle Colorblack
Pep CodeENVPEP2204005
Pep Verification Date2023-09-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Typecontrol accessories
Package Weight(Lbs)492.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 4.252044398213397
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-09-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2204005
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2204005
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- rotary handle
Range Of ProductEasyPact CVS400...630
ETIM
- ETIM 8
- EC000229
ETIM 9EC000229
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
