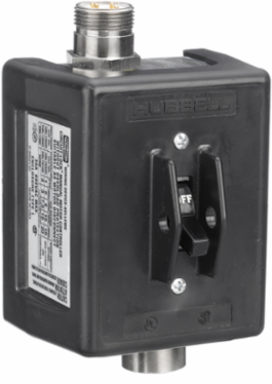

Hubbell Wiring Device-Kellems HBL1389MQR2 Disconnect Switch 3 Pole 30A 600V AC NEMA 1 Enclosure
- MPN: HBL1389MQR2
- UPC: 783585310916
- PPN: HBL-HBL1389MQR2
- UNSPSC: 39121521
CAD
$810.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switch, Motor Quick, 3 Pole, 30A 600V AC, NEMA 1 Enclosure, With 2) Pre-Wired LINKOSITY Receptacles
Features
- Thermoplastic Cover on Plated Steel Base
- Crush and Impact Resistance of MC Cable
- Pre-wired with LINKOSITY® components
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.4 in
- Industry Standard(s)
- Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
- Length
- 4.52 in
- Current Rating
- 30
- Size
- 4.52 in x 3.97 in x 3.4 in
- Standard
- Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
- Weight
- 2.2 lb.
- Engineering Drawing 1 Display Text
- HBL1389MQR2 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- Amperage Rating
- 30 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Cycles
- 10,000 Cycles Minimum
- Phase
- Three Phase
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- DISC SW, 3P 30A 600V, NEMA1, 2 MTQK RCPT
- Harmonization Code
- 8537109170
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Dimensions4.52 in x 3.97 in x 3.4 in
Horsepower - Maximum20
Ingress ProtectionIP67
PerformanceElectrical - Dielectric Voltage - 2,200V AC minimum for 1 minute;Electrical - Electrical Life - 6,000 cycles with load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/V-0;Environmental - Operating Temperature - Max. continuous 60°C, Min. continuous -40°C w/o impact;Mechanical - Mechanical Life - 10,000 minimum cycles;Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max;Mechanical - Terminal Torque - 30A, 20 inch pounds
Enclosure TypeType 1
Special FeaturesStandard Product
TypeDisconnect Switches
Width3.97 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextCircuit-Lock® Motor Disconnects
ConnectivityPre-Wired
Display SizeStandard Sized Product
Load CapacityInductive
Operating TemperatureMax. continuous 60°C, Min. continuous -40°C Without impact
Wattage18000
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesMotorQuick/LINKOSITY
BOX SIZE6.000x8.000x8.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585310916
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
