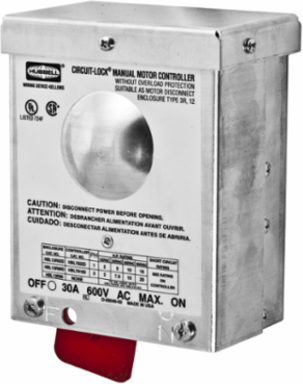

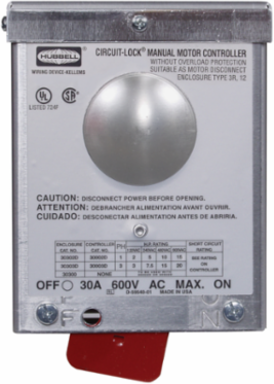

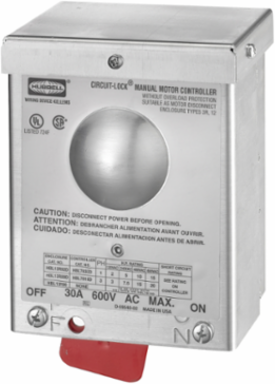

Hubbell HBL13R89 Circuit-Lock NEMA 3R Disconnect Switch, 3-Pole, 30A, Aluminum
- MPN: HBL13R89
- UPC: 783585680972
- PPN: HBL-HBL13R89
- UNSPSC: 39121521
CAD
$222.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit-Lock® NEMA 3R Enclosure Switch Disconnect, 3-Pole, 30A 600V AC, Aluminum
Features
- All aluminum cover and base
- Flip-lid enclosure
- Ideal for use on outdoor equipment
- Surface mount control
- Standard Product
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Poles | 3 |
| Dielectric Voltage | 2200 V AC minimum for 1 minute |
| Length | 5.52 in |
| Height | 3.3 in |
| Weight | 1.55 lb |
| Color | Aluminum |
| Mechanical Life | 10,000 cycles |
| Short Circuit Current Rating | 60 A max when protected by J fuses |
| Wire Type | Solid and stranded copper |
| Standard | CSA-C22.2 No.14; UL 508 |
| Voltage | 600 V AC |
|---|---|
| Power Rating | 18000 W |
| Operating Temperature | -40 C to 75 C |
| Width | 4.4 in |
| Dimensions | 5.52 in x 4.4 in x 3.3 in |
| Enclosure Material | Aluminum |
| Enclosure Type | NEMA 3R |
| Electrical Life | 6,000 cycles at rated switch load |
| Terminal Accommodations | #10 AWG Max. |
| Flammability | UL94HB/VO |
| Country of Origin | CN |
