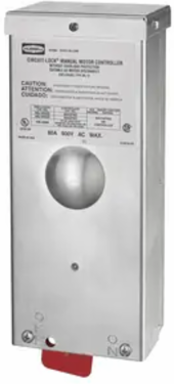

Hubbell Wiring Device-Kellems HBL16R93D 60A 600V 3-Phase Disconnect Switch, NEMA 3R Enclosure
Hubbell Wiring Device-Kellems HBL16R93D 60A 600V 3-Phase Disconnect Switch, NEMA 3R Enclosure
- MPN: HBL16R93D
- UPC: 783585202761
- PPN: HBL-HBL16R93D
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$379.68/ EA
Description
REPLACES HBL16R93
Features
- Front and back wiring with steel screws and copper terminals
- Recessed wiring wells for finger safe environments
- Thermoset body withstands high temperatures
- Standard Product
Specifications
Specifications
- Country of Origin
- PR
- Dimensions
- 10.11 in x 4.4 in x 3.3 in
- Height
- 3.3 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Performance
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
- Current Rating
- 60
- Size
- 10.11 in x 4.4 in x 3.3 in
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Weight
- 3 lb.
- Amperage Rating
- 60 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor and Outdoor
- Operating Cycles
- 10,000 Cycles Minimum
- Phase
- Three Phase
- Wattage
- 36000
- Description - Invoice
- 60A 600V 3P DISC SW W/NEMA 3R
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Series
- Non-Fused
- BOX SIZE
- 10.800x12.200x10.000 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585202761
- Case Weight
- 9.600 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 576.000 lb.
Current / Amperage Rating60 A
Each - Width5.600 in
Horsepower - Maximum30
Length10.11 in
ApplicationRed Slide
Enclosure TypeNEMA 3R
Special FeaturesStandard Product
TypeDisconnect Switches
Width4.4 in
ConnectivityPressure Terminal Screws
Display SizeStandard Sized Product
Load CapacityInductive
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStandard Duty
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number16R93;HBL16R93
Material - Mounting HardwareScrew Mounting
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585202760
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
