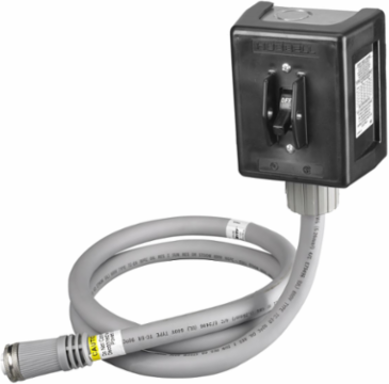

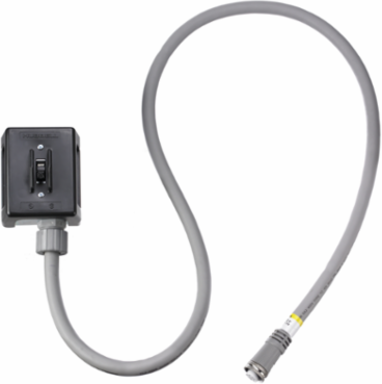

Hubbell Wiring Device-Kellems HBL1389MQ5 Disconnect Switch, 3 Pole, 30A 600V AC, NEMA 1, 4.52 x 3.97 x 3.4 Inch
- MPN: HBL1389MQ5
- UPC: 783585310923
- PPN: HBL-HBL1389MQ5
- UNSPSC: 39121521
CAD
$655.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Disconnect Switch, Motor Quick, 3 Pole, 30A 600V AC, NEMA 1 Enclosure, With 5' Pre-Wired Female Cable
Features
- Thermoplastic Cover on Plated Steel Base
- Crush and Impact Resistance of MC Cable
- Pre-wired with LINKOSITY® components
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 3.4 in |
| Industry Standard(s) | Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355 |
| Length | 4.52 in |
| Current Rating | 30 |
| Size | 4.52 in x 3.97 in x 3.4 in |
| Standard | Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355 |
| Weight | 4.05 lb. |
| Engineering Drawing 1 Display Text | HBL1389MQ5 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| Amperage Rating | 30 A |
| Dielectric Strength | 2,200V AC minimum for 1 minute |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Cycles | 10,000 Cycles Minimum |
| Phase | Three Phase |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | DISC SW, 3P 30A 600V, NEMA1, 5' W LEADS |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Mounting |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585310923 |
| Lowest Level UOM | Each |
| Dimensions | 4.52 in x 3.97 in x 3.4 in |
|---|---|
| Horsepower - Maximum | 20 |
| Ingress Protection | IP67 |
| Performance | Electrical - Dielectric Voltage - 2,200V AC minimum for 1 minute;Electrical - Electrical Life - 6,000 cycles with load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/V-0;Environmental - Operating Temperature - Max. continuous 60°C, Min. continuous -40°C w/o impact;Mechanical - Mechanical Life - 10,000 minimum cycles;Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max;Mechanical - Terminal Torque - 30A, 20 inch pounds |
| Enclosure Type | Type 1 |
| Special Features | Standard Product |
| Type | Disconnect Switches |
| Width | 3.97 in |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Circuit-Lock® Motor Disconnects |
| Connectivity | Pre-Wired |
| Display Size | Standard Sized Product |
| Load Capacity | Inductive |
| Operating Temperature | Max. continuous 60°C, Min. continuous -40°C Without impact |
| Wattage | 18000 |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A240 |
| Series | MotorQuick/LINKOSITY |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 3353146111 |
