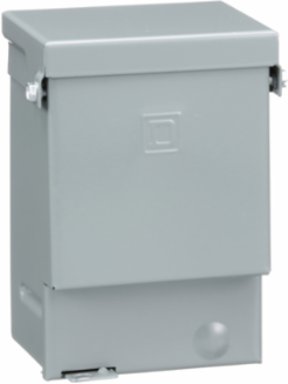

Square D CQO200TR Enclosed Molded Case Switch 60A 2 Pole 240VAC NEMA 3R CSA Certified
- MPN: CQO200TR
- UPC: 785901652069
- PPN: SCH-CQO200TR
CAD
$52.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 60A and 2 pole. It has 22kA rating, 240VAC, and NEMA 3R. This unit is used with air conditioning systems. The product is rated cUL.
Features
- Engineered explicitly as a non-fused air conditioning disconnect, this 60A, 2-pole molded case switch safely isolates single-phase electrical loads up to 240VAC. It provides a reliable service disconnect for residential and commercial central air conditioning compressors, heat pumps, and demanding motor loads without the ongoing hassle or replacement costs of traditional pull-out fuses.
- Housed in a rugged NEMA 3R rainproof metallic enclosure, this switch provides superior protection against rain, sleet, snow, and external ice formation. The weather-resistant construction ensures long-term operational integrity and prevents moisture intrusion, making it the perfect choice for exposed, vulnerable outdoor installations alongside exterior HVAC units.
- this Schneider Electric safety switch is fully CSA Certified and cUL listed, guaranteeing compliance with strict Canadian electrical standards and local building inspector mandates. Its high-quality molded case mechanism ensures positive, predictable circuit termination, minimizing the risk of arc flashes and providing electrical contractors and property owners complete peace of mind.
- Boasting a robust 22kA short-circuit current rating (SCCR), this molded case switch provides exceptional high-interrupting performance to withstand massive electrical surges without catastrophic failure. This premium internal engineering protects upstream infrastructure and ensures your system handles fault currents far better than standard, low-tier pull-out boxes.
- Featuring compact physical dimensions (9.29 in Height x 4.80 in Width x 3.74 in Depth), this QO Canadian series disconnect fits easily on narrow exterior walls, framing studs, or brick facades. The interior layout leaves plenty of wire-bending space and accessible terminal lugs for fast, hassle-free pull-throughs, significantly lowering installation times for field technicians and electricians
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 95 mm |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.4600666071, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0010739033, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 11 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 122 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Customs Code | 8536509065 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1426977048 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 9.8212161765 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Phase | 1 phase |
| Product Or Component Type | enclosed molded case switch |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 236 mm |
| Certificate Agency | CSA |
| Package Weight(Lbs) | 1.361 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 10.5123953918 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | enclosed molded case switch |
|---|
