Hubbell Wiring Device-Kellems

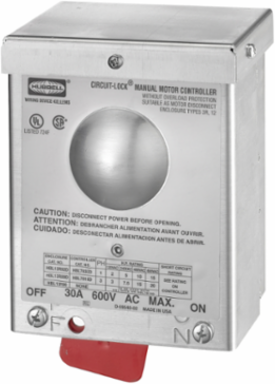

Hubbell Wiring Device-Kellems HBL13R92 Circuit-Lock NEMA 3R Switch Disconnect, 2-Pole, 30A, Aluminum

Circuit-Lock NEMA 3R Switch Disconnect, 2-Pole, 30A, Aluminum
  • MPN: HBL13R92
  • UPC: 783585680989
  • PPN: HBL-HBL13R92
  • UNSPSC: 39121521

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$207.52/ EA

Description

Circuit-Lock® NEMA 3R Enclosure Switch Disconnect, 2-Pole, 30A 600V AC, Aluminum

Features

  • All aluminum cover and base
  • Flip-lid enclosure
  • Ideal for use on outdoor equipment
  • Surface mount control
  • Standard Product

Specifications

Specifications

Country of Origin
China
Current / Amperage Rating
30 A
Height
3.3 in
Length
5.52 in
Current Rating
30
Size
5.52 in x 4.4 in x 3.3 in
Type
Disconnect Switches
Width
4.4 in
General Literature Asset 1 Display Text
Safety Product Guide
General Literature Asset 3 Display Text
Circuit-Lock® Motor Disconnects
Connectivity
Pressure Terminal Screws
Environmental Conditions
Indoor and Outdoor
Operating Cycles
10,000 Cycles Minimum
Style
Standard Duty
Class Code
A16
Freight Class Code
06168002
Image Actual Or Representative
A
Replaced Catalog Number
13R92;HBL13R92;HBL13R92BW;HBL13R92DX;HBL13R92MD;HBL13R92MDS
Material - Mounting Hardware
Screw Mounting
Base Unit of Measure
EA
Carton - Gross Weight per Pack
6.3 lb.
Carton - Pack Description
Carton
Carton - Total Units
4 EA
Each - Pack Description
Each
ColorAluminum
Dimensions5.52 in x 4.4 in x 3.3 in
Horsepower - Maximum15
ApplicationRed Slide
Enclosure TypeNEMA 3R
Special FeaturesStandard Product
Weight1.45 lb.
Engineering Drawing 1 Display TextHBL13R92 AutoCAD Drawing
General Literature Asset 2 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
Amperage Rating30 A
Display SizeStandard Sized Product
Load CapacityInductive
PhaseSingle Phase
Wattage18000 W
Description - Invoice30A 600V 2P DISC SW W/NEMA 3R
Harmonization Code8536509040
MSDS FlagNo
Sub Class CodeA16A240
SeriesNon-Fused
BOX SIZE6.700x10.200x8.400 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783585680989
Case Weight5.600 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
No
