Schneider Electric VLSS5005 TeSys VLS Disconnect Switch, 500 mm Length, 5 mm Width, Mercury Free
- MPN: VLSS5005
- PPN: SCH-VLSS5005
CAD
$72.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

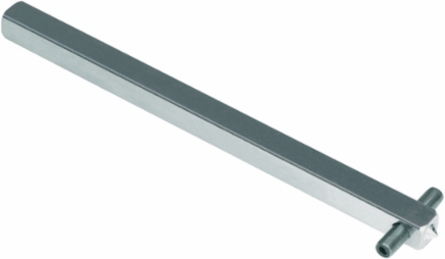

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH1S5R, VLSH2S5R, VLSH2H5R, VLSH2H5RD, VLSH1S5B, VLSH2S5B, VLSH2H5B, VLSH2H5BD or VLSH2S5BC. It can also be used with mechanical interlock VLS8C1 or VLS8C2 or mechanical coupling system VLS8M1. This shaft extension is 0.20 inches by 0.20 inches and 19.69 inches long. The shaft extension weighs 0.19 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
Features
- Engineered as a critical structural component within the Schneider Electric Harmony/TeSys™ VLS and Vario LS families, this shaft extension provides the physical link required for deeper control panels. It is fully compatible with both the UL508 motor-disconnect body styles (16A to 63A) and the heavy-duty UL98 non-fusible disconnect switches (30A to 125A), connecting directly to rear-mounting handle models like the VLSH1S5R, VLSH2S5R, and VLSH2H5B.
- Yes, featuring a generous physical layout length of exactly 500 mm (19.69 inches), this extended shaft allows machinery builders to bridge wide interior spatial gaps. It permits the active switch mechanism to be safely back-panel or DIN-rail mounted at the rear of deep, freestanding enclosures, while extending the mechanical drive all the way forward to a front-door-mounted rotary handle for safe external operation.
- This accessory features a strict 5 mm by 5 mm (0.20 x 0.20 inch) square mechanical profile. This standardized cross-section ensures an exact, slip-free structural engagement with the internal receiver sockets of VLS switches and handles, and it is fully certified for integration into dual-switch setups using the VLS8C1 mechanical interlock or the VLS8M1 mechanical coupling system.
- Weighing a lean 88 grams (3.10 oz), this dense steel shaft is calibrated to deliver an unyielding mechanical link between the door handle and the interior switch jaws. It easily withstands continuous rotational torque loads and rapid, forceful emergency-stop throws, ensuring crisp blade engagement without physical warping, twisting, or mechanical lag over a long operational lifespan.
Documentation & Downloads
Specifications
Additional
- Weight
- 88 g (0.19 lb)
- Width
- 5 mm (0.20 in)
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS scope)
- Product Or Component Type
- shaft extension
- Range
- TeSys
Length500 mm (19.69 in)
Height5 mm (0.20 in)
Rohs Exemption InformationYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active declaration (out of China RoHS scope)
WeeeEU disposal compliant
Range CompatibilityTeSys TeSys VARIO LS VLSH
Device Short NameVLSS
