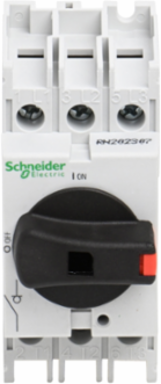

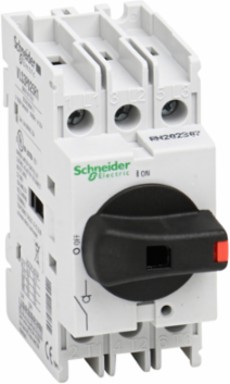

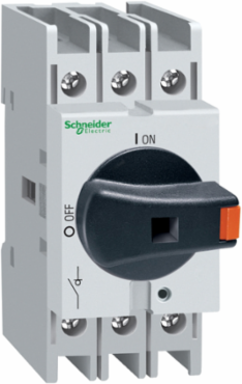

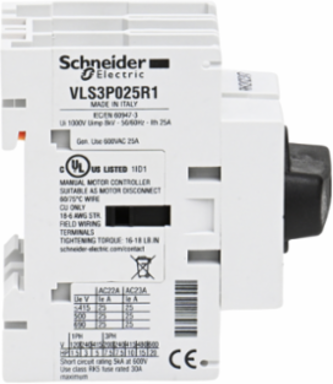

Schneider Electric VLS3P025R1 TeSys VLS Disconnect Switch 25A 15HP 480VAC 3 Poles DIN Rail Mount
- MPN: VLS3P025R1
- PPN: SCH-VLS3P025R1
CAD
$91.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys VLS Disconnect Switch 25A 15HP 480VAC 3 Poles DIN Rail Mount
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy

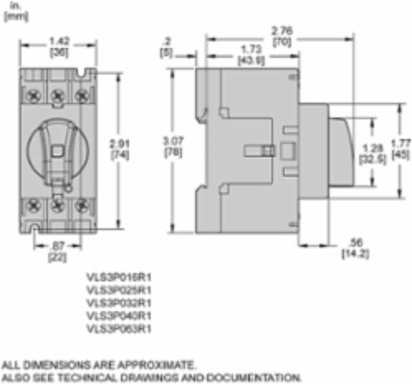

Depth78 mm
Physical Attributes
- Color
- Gray
- Handle Front Plate Color
- grey
Handle Colorblack
Complementary Attributes
- Rated Operational Power In W
- 11 kW 400 V AC-23A), 15 kW 500 V AC-23A), 22 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- [Ie] Rated Operational Current
- 25 A AC-22A Ue: 500 V, 25 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 500 V, 25 A AC-23A Ue: 690 V25 A Ue: 600 V UL 508, 25 A AC-21A Ue: 400 V, 25 A AC-21A Ue: 500 V, 25 A AC-21A Ue: 690 V, 25 A AC-22A Ue: 400 V, 25 A AC-23A Ue: 400 V
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2541
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- VLS
- Control Type
- rotary handle
- Electrical Durability
- 100000 cycles AC-21A
- Fire Resistance
- 960 °C IEC 60695-2-11
- Intermittent Duty Class
- class 120 - 60 %
- Mechanical Durability
- 100000 cycles
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- switch body
- Returnability
- Yes
- Rotary Handle Padlocking
- 1 padlock 4-4 mm
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- grey
- Width Nominal
- 36 mm
- [Icw] Rated Short-time Withstand Current
- 800 A 690 V 1 s
- [Ithe] Conventional Enclosed Thermal Current
- 25 A
- Rated Conditional Short-circuit Current
- 50 kA 400 V 25 A gG
- Package Weight(Lbs)
- 172.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity37.5 A 690 V AC-21A, 75 A 690 V AC-22A, 250 A 690 V AC-23A
Certificate AgencycULus, GL
[Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
Local Data StatusPublishable
Return IndicatorY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO
Device Short NameVLS3P
Energy Efficiency OptimizedFalse
Fixing Modeby clips back
Marking0 - 1
Mounting Supportback DIN rail
Network TypeAC
Performance Levelhigh performance
Product NameTeSys VARIO LS
RangeTeSys
Rotary Handle Mounting Styledirect
Suitability For Isolationyes
Tightening Torquepower circuit 1.8-2 N.m screw clamp terminals
Handle Colorblack
Height Nominal75 mm
[Icm] Rated Short-circuit Making Capacity1128 A 690 V
[Ith] Conventional Free Air Thermal Current25 A (at 55 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
