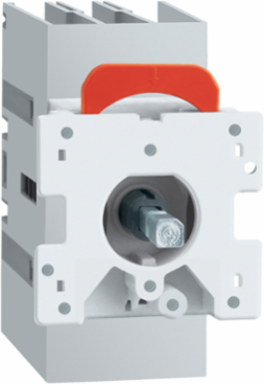

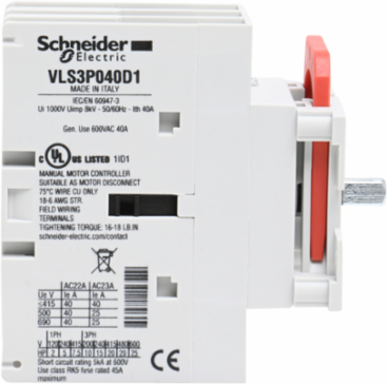

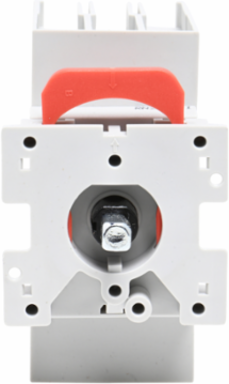

Schneider Electric VLS3P040D1 TeSys VLS Disconnect Switch 40A 20HP 3-Pole Size 1 Door Mount
- MPN: VLS3P040D1
- PPN: SCH-VLS3P040D1
CAD
$138.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys VLS Disconnect Switch 40A 20HP 3-Pole Size 1 Door Mount
Features
- Engineered specifically for demanding industrial automation, this 3-pole TeSys VLS body switch safely manages up to 40A of general-use current. With robust three-phase operational ratings of 20 HP at 480 VAC and 25 HP at 600 VAC, it effortlessly controls heavy-duty inductive machinery, ensuring your high-performance HVAC, pumping, or material handling systems run seamlessly without unexpected downtime.

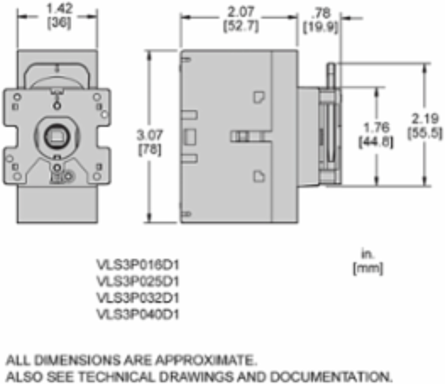

- Designed to optimize space in tight enclosures, this ultra-compact Size 1 disconnect switch measures just 1.77 inches wide and 3.07 inches tall. It is built exclusively for direct door mounting, which allows operators to safely actuate the switch from outside the panel while maximizing critical DIN rail space inside for your PLC and relay configurations.
- This modular switch body is built for effortless, adaptation-on-the-fly, allowing you to add auxiliary contact blocks or a fourth power pole completely tool-free. Whether you need to integrate a normally closed early-break contact (like the VLSA10R1E) or a mechanical line changeover interlock for power sequencing, the clip-on design guarantees swift field upgrades with zero assembly hassle.

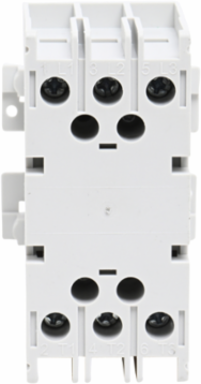

- Equipped with heavy-duty screw clamp terminals, this disconnect switch securely accepts solid or stranded wiring ranging from 18 AWG down to thick 6 AWG. This broad compatibility eliminates the need for specialized crimp lugs, speeding up your installation times and ensuring a vibration-resistant, low-resistance electrical connection.
- Fully certified by cCSAus and UL Listed under UL508 safety standards for motor disconnects, this high-performance switch guarantees compliance with both Canadian Electrical Code (CEC) and NEC regulations. Featuring an IP20 finger-safe design and a 5 kA Short Circuit Current Rating (SCCR) at 600V, it provides the vital circuit isolation required to pass strict field inspections and protect maintenance personnel.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Depth78 mm
Physical Attributes
- Color
- Gray
Complementary Attributes
- Maximum Horse Power Rating
- 10 hp 200/208 V AC, 15 hp 240 V AC, 20 hp 480 V AC, 25 hp 600 V AC, 2 hp 120 V AC, 5 hp 240 V AC
Rated Operational Power In W18.5 kW 400 V AC-23A), 18.5 kW 500 V AC-23A), 22 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Making Capacity
- 120 A 690 V AC-22A, 400 A 690 V AC-23A, 60 A 690 V AC-21A
- Certificate Agency
- cULus, GL
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- VLS
- Device Short Name
- VLS3P
- Energy Efficiency Optimized
- False
- Intermittent Duty Class
- class 120 - 60 %
- Mounting Support
- door
- Network Type
- AC
- Performance Level
- high performance
- Product Name
- TeSys VARIO LS
- Range
- TeSys
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 45 mm
- [Icw] Rated Short-time Withstand Current
- 800 A 690 V 1 s
- [Ithe] Conventional Enclosed Thermal Current
- 40 A
- Rated Conditional Short-circuit Current
- 50 kA 400 V 40 A gG
- Package Weight(Lbs)
- 192.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
[Ie] Rated Operational Current40 A AC-22A Ue: 500 V, 40 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 690 V40 A Ue: 600 V UL 508, 40 A AC-21A Ue: 400 V, 40 A AC-21A Ue: 500 V, 40 A AC-21A Ue: 690 V, 40 A AC-22A Ue: 400 V, 40 A AC-23A Ue: 400 V, 25 A AC-23A Ue: 500 V
Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Local Publishable Date2026-04-04
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 18...AWG 6 copper
Contacts Type And Composition3 NO
Electrical Durability100000 cycles AC-21A
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability100000 cycles
Network Frequency50/60 Hz
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch body
ReturnabilityYes
Tightening Torquepower circuit 1.8-2 N.m screw clamp terminals
Height Nominal73 mm
[Icm] Rated Short-circuit Making Capacity1128 A 690 V
[Ith] Conventional Free Air Thermal Current40 A (at 55 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product Compatibilityfuse RK5 45 A maximum: 5 kA at 600 V AC
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
