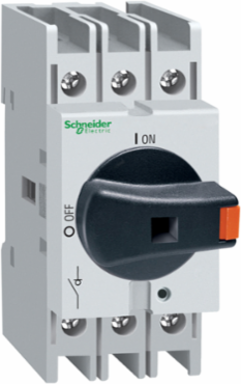

Schneider Electric VLS3P032R1 TeSys VLS Disconnect Switch 32A 20HP 3-Phase DIN Rail Mount
- MPN: VLS3P032R1
- PPN: SCH-VLS3P032R1
CAD
$97.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 32A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC and 240 VAC, a 20 HP rating at 480 VAC and a 20 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
Features
- Designed for high-performance industrial switching, this 32-amp disconnect switch provides reliable power control for 3-phase motors and machinery. It is engineered to manage the high-torque demands of industrial equipment, ensuring a clean break and consistent power delivery that prevents motor stalling and extends the lifespan of your mechanical assets.
- Built with IP20-rated finger-safe terminals, the VLS3P032R1 protects personnel from accidental contact with live parts while preventing large dust particles from interfering with the connection points. The robust screw-clamp terminals ensure a vibration-proof grip on your conductors, reducing the risk of arc flashes and hot spots in high-vibration manufacturing environments.
- Featuring a highly efficient, space-saving footprint, the VLS3P032R1 can be quickly snapped onto a standard 35mm DIN rail or screw-mounted directly to a backplate. This versatile installation flexibility allows panel builders to optimize internal layout density, reducing the overall size of electrical enclosures without sacrificing accessibility or thermal performance.
- This disconnect switch carries a full suite of global approvals, including UL 508, CSA, and CE marking, making it a "universal" component for equipment destined for North American or European markets. Using a globally recognized Schneider TeSys VLS component simplifies your supply chain and guarantees that your control panels will meet the strict regulatory requirements of any jurisdiction.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 32 A
- Horsepower Rating Three Phase
- 10 HP at 200-208 V AC, 10 HP at 240 V AC, 20 HP at 480 V AC, 20 HP at 600 V AC
- Voltage Rating UL
- 600 V AC 50/60 Hz UL 508
- Short Circuit Current Rating
- 5 kA at 600 V AC with 30A Type RK5 fuse max
- Rated Short Time Withstand Current
- 800 A at 690 V for 1 second
- Breaking Capacity
- 48 A at 690 V AC-21A, 96 A at 690 V AC-22A, 256 A at 690 V AC-23A
- Mechanical Durability
- 100,000 cycles
- Poles
- 3P

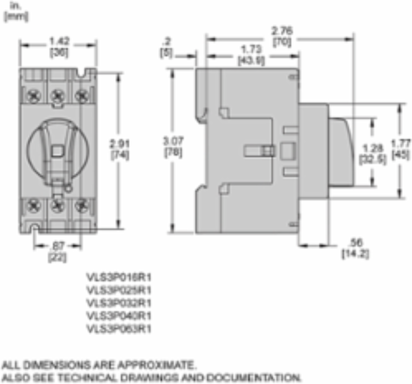

- Height
- 75 mm
- Product Weight
- 0.135 kg
- Terminal Connection
- Screw clamp terminals 10-10 mm² solid, 16-16 mm² flexible without cable end
- Mounting Method
- DIN rail mount, back clipped
- Rotary Handle Padlocking
- 1 padlock, 4 mm (0.16 in)
- Degree of Protection
- IP20 IEC 60529
- Network Frequency
- 50/60 Hz
- Compatibility Code
- VLS
- Ambient Air Temperature for Operation
- -25 to 55 °C (-13 to 131 °F)
- Fire Resistance
- 960 °C (IEC 60695-2-11)
- Suitability For Isolation
- Yes
- Color
- Gray (handle black, handle front plate gray)
Horsepower Rating Single Phase2 HP at 120 V AC, 5 HP at 240 V AC
IEC Rated Operational Power15 kW at 400 V AC, 18.5 kW at 500 V AC, 22 kW at 690 V AC
Voltage Rating IEC690 V AC 50/60 Hz
Rated Conditional Short-Circuit Current50 kA at 400 V with 32 A gG fuse type
Rated Impulse Withstand Voltage8 kV
Making Capacity48 A at 690 V AC-21A, 96 A at 690 V AC-22A, 320 A at 690 V AC-23A
Electrical Durability100,000 cycles AC-21A
Length78 mm
Width36 mm
Terminal Wire SizeAWG 18 to AWG 6 copper solid, 10 mm²; flexible 16 mm²
Tightening Torque1.8-2 N·m for power circuit screw clamp terminals
Control TypeRotary handle, direct mount
Contacts Type3 Normally Open (3 NO)
MaterialSwitch body
Network TypeAC
Standards ComplianceUL 508, CSA C22.2 No 14, IEC 60947-3, cULus Listed, GL
Mechanical RobustnessVibrations 2-100 Hz Fc 0.7 g; shocks 11 ms Ea 15 gn (IEC 60068-2-6, IEC 60068-2-27)
Environmental CompliancePro-active China RoHS, EU RoHS compliant, free of SVHC and toxic heavy metals
Intermittent Duty ClassClass 120 - 60 %
Device NameTeSys VARIO LS VLS3P switch body
