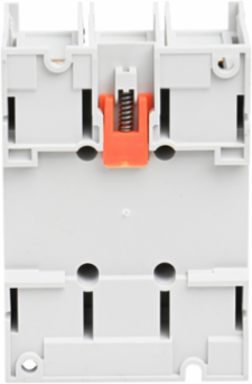

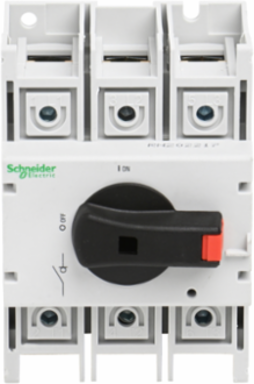

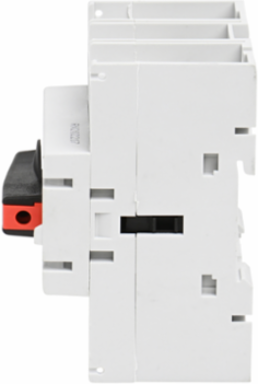

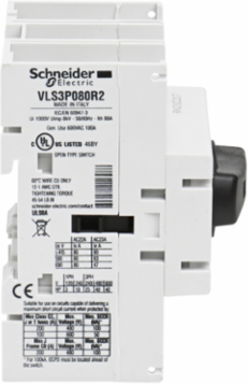

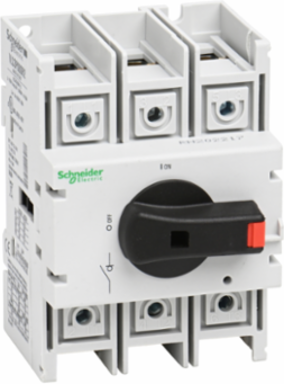

Schneider Electric VLS3P080R2 TeSys VLS Disconnect Switch, 80A, 40HP, Size 2, DIN Rail Mount
Schneider Electric VLS3P080R2 TeSys VLS Disconnect Switch, 80A, 40HP, Size 2, DIN Rail Mount
- MPN: VLS3P080R2
- PPN: SCH-VLS3P080R2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$285.80/ EA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 80A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 25HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 45 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept from 12 AWG to 1 AWG wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Complementary
- Network Frequency
- 50/60 Hz
- Rotary Handle Mounting Style
- direct
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- class 120 - 60 %
- Network Type
- AC
- Fixing Mode
- by clips back
- Handle Colour
- black
- Net Weight
- 0.365 kg
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Control Type
- rotary handle
- Contacts Type And Composition
- 3 NO
- Electrical Durability
- 30000 cycles AC-21
- [Ie] Rated Operational Current
- 100 A Ue: 600 V UL98 || 80 A AC-21A Ue: 400 V || 80 A AC-21A Ue: 500 V || 80 A AC-21A Ue: 690 V || 80 A AC-22A Ue: 400 V || 80 A AC-22A Ue: 500 V || 80 A AC-22A Ue: 690 V || 80 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
- Mechanical Durability
- 30000 cycles
- Colour
- grey
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- Device Composition
- handle || switch
- Rated Operational Power In W
- 45 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
- [Icw] Rated Short-Time Withstand Current
- 2500 A 690 V 1 s
Rotary Handle Padlocking1 padlock 4-4 mm
[Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 508
Height75 mm
[Ith] Conventional Free Air Thermal Current80 A (at 55 °C)
Handle Front Plate Colourgrey
[Ithe] Conventional Enclosed Thermal Current80 A
Marking0 - 1
Performance Levelhigh performance
Making Capacity120 A 690 V AC-21A || 240 A 690 V AC-22A || 800 A 690 V AC-23A
Connections - Terminalspower circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
[Icm] Rated Short-Circuit Making Capacity3550 A 690 V
Suitability For Isolationyes
Mounting Supportback DIN rail
Poles Description3P
Width70 mm
Depth100 mm
Breaking Capacity120 A 690 V AC-21A) || 240 A 690 V AC-22A) || 640 A 690 V AC-23A)
Rated Conditional Short-Circuit Current50 kA 400 V 80 A gG
Environment
- Product Certifications
- cULus || GL
- Standards
- UL98 || CSA C22.2 No 4 || IEC 60947-3
- Compatibility Code
- VLS
- Fire Resistance
- 960 °C IEC 60695-2-11
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 IEC 60529
Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Specifications
- Product Or Component Type
- switch body
- Range
- TeSys
Product NameTeSys VARIO LS
Device Short NameVLS3P
