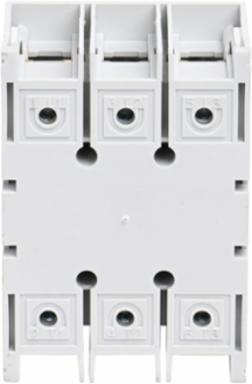

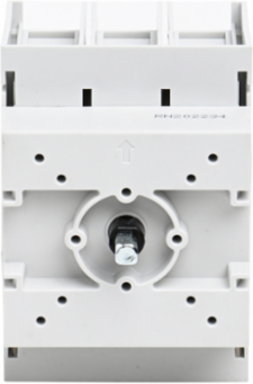

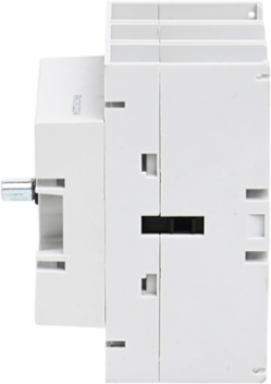

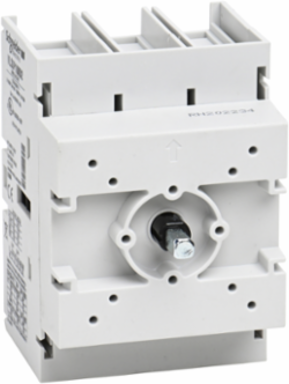

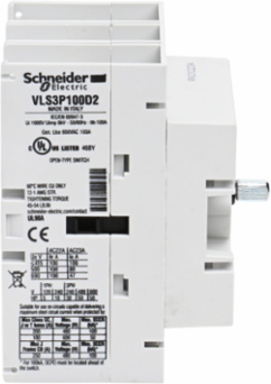

Schneider Electric VLS3P100D2 Disconnect Switch, 100A, 50HP at 480VAC, Size 2, 3 Pole

MPN: VLS3P100D2
PPN: SCH-VLS3P100D2
UNSPSC: 39122233

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$350.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 100A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 5 HP rating at 120 VAC and a 10 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 30 HP rating at 200 to 208 VAC and 240 VAC, a 50 HP rating at 480 VAC and 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 200A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 55 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 12 AWG to 1 AWG. This disconnect switch is 3.94 inches tall, 2.76 inches wide and 2.76 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.

Features

The three-pole disconnect switches are made up of a single unit body
Compact Size
No tools needed for mounting and removal of the fourth pole and add-on blocks
All VLS disconnect switches are certified by cCSAus and are UL Listed for Canada and USA

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy

Depth	100 mm

Physical Attributes

Color	Gray

Complementary Attributes

Maximum Horse Power Rating	30 hp 200/208 V AC, 30 hp 240 V AC50 hp 480 V AC, 50 hp 600 V AC5 hp 120 V AC, 10 hp 240 V AC
Ie Rated Operational Current	100 A AC-22A Ue: 500 V, 100 A AC-22A Ue: 690 V, 100 A Ue: 600 V UL98100 A AC-21A Ue: 400 V, 100 A AC-21A Ue: 500 V, 100 A AC-21A Ue: 690 V, 100 A AC-22A Ue: 400 V, 100 A AC-23A Ue: 400 V, 80 A AC-23A Ue: 500 V, 47 A AC-23A Ue: 690 V
Icm Rated Short Circuit Making Capacity	3550 A 690 V
Uimp Rated Impulse Withstand Voltage	8 kV

Rated Operational Power In W	55 kW 400 V AC-23A)45 kW 500 V AC-23A), 45 kW 690 V AC-23A)
Ue Rated Operational Voltage	600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
Icw Rated Short Time Withstand Current	2500 A 690 V 1 s
Rated Conditional Short Circuit Current	50 kA 400 V 100 A gG

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Mechanical Robustness	vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
Certificate Agency	cULus, GL
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	VLS
Device Short Name	VLS3P
Energy Efficiency Optimized	False
Intermittent Duty Class	class 120 - 60 %
Mechanical Durability	30000 cycles
Network Frequency	50/60 Hz
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	switch body
Returnability	Yes
Tightening Torque	power circuit 5-6 N.m screw clamp terminals
Height Nominal	70 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	100 A (at 55 °C)
Warranty In Months	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Connections Terminals	power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1943
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	12 AWG...1 AWG copper
Contacts Type And Composition	3 NO
Electrical Durability	30000 cycles AC-21
Fire Resistance	960 °C IEC 60695-2-11
Making Capacity	1000 A 690 V AC-23A150 A 690 V AC-21A300 A 690 V AC-22A
Mounting Support	door
Network Type	AC
Performance Level	high performance
Product Name	TeSys VARIO LS
Range	TeSys
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	70 mm
Customs Code	8536509065
Ithe Conventional Enclosed Thermal Current	100 A

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	fuse J 100 A maximum: 50 kA at 600 V ACfuse T 100 A maximum: 50 kA at 600 V ACcircuit-breaker 250 A maximum: 100 kA at 480 V AC, fuse CC 200 A maximum: 100 kA at 480 V AC, fuse J 200 A maximum: 100 kA at 480 V AC, fuse T 200 A maximum: 100 kA at 480 V AC, fuse CC 100 A maximum: 50 kA at 600 V AC
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Ambient Air Temperature For Operation	-25-55 °C, -25-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
