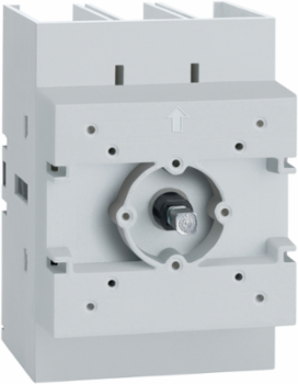

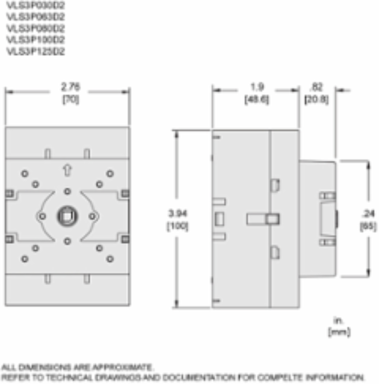

Schneider Electric VLS3P030D2 TeSys VLS Disconnect Switch 30A 20HP 480VAC Size 2 Door Mount
- MPN: VLS3P030D2
- PPN: SCH-VLS3P030D2
CAD
$222.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 30A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10HP rating at 200 to 208 VAC and 240 VAC, a 20HP rating at 480 VAC and a 30 HP rating at 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 22 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.76 inches wide and 2.76 inches deep. The switch weighs 0.80 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Depth | 100 mm |
|---|
Physical Attributes
| Color | Gray |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 10 hp 200/208 V AC, 10 hp 240 V AC20 hp 480 V AC30 hp 600 V AC2 hp 120 V AC, 5 hp 240 V AC |
|---|
| Rated Operational Power In W | 15 kW 400 V AC-23A), 15 kW 500 V AC-23A)30 kW 690 V AC-23A) |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mechanical Robustness | vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| [Ie] Rated Operational Current | 30 A AC-22A Ue: 500 V, 30 A AC-22A Ue: 690 V30 A AC-23A Ue: 500 V, 30 A AC-23A Ue: 690 V30 A Ue: 600 V UL9830 A AC-21A Ue: 400 V, 30 A AC-21A Ue: 500 V, 30 A AC-21A Ue: 690 V, 30 A AC-22A Ue: 400 V, 30 A AC-23A Ue: 400 V |
| Connections - Terminals | power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | VLS |
| Device Short Name | VLS3P |
| Energy Efficiency Optimized | False |
| Intermittent Duty Class | class 120 - 60 % |
| Mechanical Durability | 30000 cycles |
| Network Frequency | 50/60 Hz |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | switch body |
| Returnability | Yes |
| Tightening Torque | power circuit 5-6 N.m screw clamp terminals |
| Height Nominal | 70 mm |
| [Icm] Rated Short-circuit Making Capacity | 3550 A 690 V |
| [Ith] Conventional Free Air Thermal Current | 30 A (at 55 °C) |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509025 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | cULus, GL |
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2541 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1 AWG copper |
| Contacts Type And Composition | 3 NO |
| Electrical Durability | 30000 cycles AC-21 |
| Fire Resistance | 960 °C IEC 60695-2-11 |
| Making Capacity | 630 A 690 V AC-23A94.5 A 690 V AC-21A189 A 690 V AC-22A |
| Mounting Support | door |
| Network Type | AC |
| Performance Level | high performance |
| Product Name | TeSys VARIO LS |
| Range | TeSys |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 70 mm |
| [Icw] Rated Short-time Withstand Current | 2500 A 690 V 1 s |
| [Ithe] Conventional Enclosed Thermal Current | 30 A |
| Rated Conditional Short-circuit Current | 50 kA 400 V 63 A gG |
| Package Weight(Lbs) | 434.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Product Compatibility | fuse J 60 A maximum: 50 kA at 600 V ACfuse T 60 A maximum: 50 kA at 600 V ACcircuit-breaker 100 A maximum: 100 kA at 480 V ACfuse CC 100 A maximum: 100 kA at 480 V AC, fuse J 100 A maximum: 100 kA at 480 V AC, fuse T 100 A maximum: 100 kA at 480 V AC, fuse CC 60 A maximum: 50 kA at 600 V AC |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -25-55 °C, -25-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
