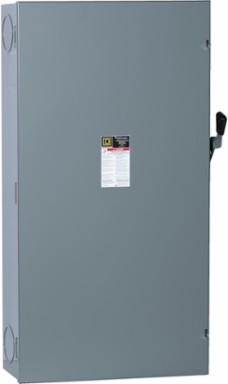

Square D CD225N General Duty Fusible Safety Switch 400A 120/240V 2-Pole NEMA 1

MPN: CD225N
UPC: 785901182009
PPN: SCH-CD225N

$1517.43

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 400A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	8.88 in

Complementary Attributes

Line Rated Current	400 A

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Tightening Torque	340-340 lbf.in (1/0 AWG...750 kcmil), 340-340 lbf.in (2 x 1/0 AWG...2 x 300 kcmil)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	117 kg CO2 eq., 116.74073660580466
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	245 kg CO2 eq., 245.4058452263422
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	1/0 AWG...750 kcmil copper or aluminium
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	849 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	815.7312
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	45.12 in
Certificate Agency	CSA
Short-circuit Current	100 kA maximum cartridge
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509045

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	121.71107167392802, 122 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.11623445314565208, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	365 kg CO2 eq., 364.68045510195384
Local Publishable Date	2026-07-03
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	neutral (factory installed)
Electrical Connection	lugs
Number Of Poles	2
Product Or Component Type	Single Throw Safety Switch
Series Name	general duty
Sustainable Packaging	Yes
Pep Code	ENVPEP2503029EN
Pep Verification Date	2025-03-01
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	90
Width Nominal	24.88 in
[Ue] Rated Operational Voltage	120/240 V AC
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	48.08 kg
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503029EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-01
Psr Version	PSR-0005-ed3-2023 06 06

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	848.6543430611744
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 1 galvannealed steel
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
