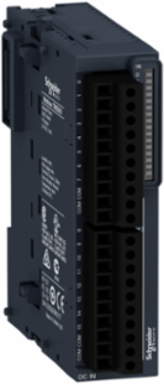

Schneider Electric TM3DI16 Modicon Discrete Input Module 16 Inputs 24V DC IP20

MPN: TM3DI16
PPN: SCH-TM3DI16

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$268.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Features

The TM3DI16 provides 16 discrete 24V DC inputs in a slim, 17.5mm wide form factor, allowing you to double your I/O capacity compared to standard 8-channel modules. This high-density design reduces the overall footprint of your control cabinet, significantly lowering hardware costs and allowing for future system expansion within limited enclosure space.
Specifically engineered for the Schneider Electric Modicon range, this module features a high-speed bus connector that snaps onto your existing logic controller. This seamless "plug-and-play" integration ensures instantaneous data synchronization and hardware recognition, eliminating complex configuration hurdles and reducing commissioning time for industrial automation projects.
Designed for ultimate versatility, the TM3DI16 supports both Sink and Source (positive/negative) wiring configurations. This flexibility allows you to standardize on a single module regardless of whether you are using Japanese-style NPN sensors or European-style PNP sensors, simplifying your inventory management and preventing costly wiring errors on the factory floor.
Each of the 16 channels features a dedicated front-facing LED indicator that provides real-time visual feedback on input status. By allowing technicians to verify signal presence at a glance without breaking out a multimeter, this feature slashes "mean time to repair" (MTTR) and ensures your automated assembly lines or material handling systems return to peak productivity faster.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Singapore, Taiwan, United States

Depth	84.6 mm

Physical Attributes

Housing Color	grey

Complementary Attributes

Maximum Cable Distance Between Devices	unshielded cable <50 m regular input

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current State 1 Guaranteed	>= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
Vibration Resistance	3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
Carbon Footprint Of The Distribution Phase [A4]	0.046284827380868684, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.005458364118522915
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	6 kg CO2 eq., 6.450824694978291
Local Publishable Date	2026-03-26
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1402009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Awg Gauge	0.14-1.5 mm² / 26 AWG...16 AWG with solid cable
Current State 0 Guaranteed	<= 1 mA<= 1 mA
Electrical Connection	10 x 1...2.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Isolation Between Channels And Bus	500 V AC
Marking	CE
Optical Interface Present	false
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	none
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Sensor Power Supply	19.2-28.8 V
Software Version	v6.1
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	20 kg CO2 eq.
Voltage State 0 Guaranteed	0...5 V DC
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Fieldbus Connection Over Separate Bus Coupler Possible	false
System Accessory	false
Short Circuit Protection Outputs Present	false
Pep Code	ENVPEP1402009EN
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; China, CN
Height Nominal	90 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	210.8 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Certificate Agency	CE, cULus, UKCA, RCM, EAC, cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.49559575384475885, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	13 kg CO2 eq., 13.392145483761825
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Bearing Track Assembly Possible	true
Device Application	Industrial Application
Front Installation Possible	false
Local Signalling	1 LED per channel (green) for input status
Network Type	DC
Power Supply Type	electronic powered by internal bus
Product Or Component Type	discrete input module
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Safety Reliability Data	MTBF = 250 years 40 °C
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Typical Current Consumption	34 mA 5 V DC
Voltage State 1 Guaranteed	15...28.8 V DC
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Digital Outputs Configurable	false
Housing Color	grey
Digital Inputs Configurable	false
Time Delay At Signal Change	4-4 ms
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Taiwan, TW
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %	3
Width Nominal	27.4 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1402009EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06

Relative Humidity	10-95 % without condensation for operation, 10-95 % without condensation for storage
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	20.39030912408427
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1402009EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	discrete input module

Range Of Product	Modicon TM3

ETIM

ETIM 8	EC001599

ETIM 9	EC001599

Output Attributes

Discrete Output Voltage Type	AC/DC

Input Attributes

Discrete Input Number	conforming to IEC 61131-2 type 3, 16
Discrete Input Current	7 mA
Discrete Input Voltage	24 V DC
Input Impedance	3.4 kOhm

Response Time On Input	4 ms (maximum (turn on)), 4 ms (maximum (turn off))
Discrete Input Logic	sink or source (positive/negative)
Discrete Input Voltage Type	DC
