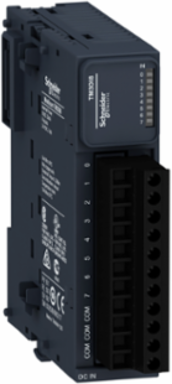

Schneider Electric TM3DI8 Modicon TM3 Discrete Input Module, 8 Inputs, 24V DC, IP20
Schneider Electric TM3DI8 Modicon TM3 Discrete Input Module, 8 Inputs, 24V DC, IP20
- MPN: TM3DI8
- PPN: SCH-TM3DI8
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$182.57/ EA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Specifications
- Discrete Input Logic
- sink or source (positive/negative)
- Discrete Input Voltage
- 24 V
- Discrete Input Current
- 7 mA input
- Discrete Input Number
- 8 input IEC 61131-2 Type 1
Range Of ProductModicon TM3
Product Or Component Typediscrete input module
Range CompatibilityModicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Environment
- Product Certifications
- CE || cULus || UKCA || RCM || EAC || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Pollution Degree
- 2
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz IEC 61000-4-8
- Ambient Air Temperature For Storage
- -25-70 °C
- Surge Withstand
- 1 kV I/O common mode IEC 61000-4-5 DC
- Resistance To Electrostatic Discharge
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV I/OIEC 61000-4-4
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2
Storage Altitude0-3000 m
Shock Resistance15 gn 11 ms
Vibration Resistance3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Ip Degree Of ProtectionIP20 with protective cover in place
Operating Altitude0...2000 m
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Complementary
- Input Impedance
- 3.4 kOhm
- Electrical Connection
- 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs
- Discrete Input Voltage Type
- DC
- Marking
- CE
- Discrete I/O Number
- 8
- Voltage State 0 Guaranteed
- 0...5 V input
- Voltage State 1 Guaranteed
- 15...28.8 V input
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Width
- 27.4 mm
- Insulation
- between input and internal logic 500 V AC || non-insulated between inputs
Maximum Cable Distance Between Devicesunshielded cable <30 m regular input
Height90 mm
Current State 1 Guaranteed>= 2.5 mA input)
Response Time4 ms turn-on) || 4 ms turn-off)
Net Weight0.085 kg
Current Consumption5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 24 mA 5 V DC via bus connector at state on)
Current State 0 Guaranteed<= 1 mA input)
Local Signallinginput status 1 LED per channel green)
Depth84.6 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1402009EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1402009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
