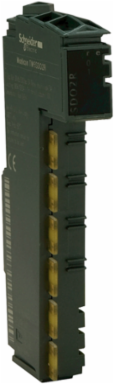

Schneider Electric TM5SDI4A Discrete input module, Modicon TM5, digital 4I, 100 to 240 V AC, 2 wires
- MPN: TM5SDI4A
- PPN: SCH-TM5SDI4A
CAD
$183.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Discrete input module, Modicon TM5, digital 4I, 100 to 240 V AC, 2 wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2, electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3, electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4, electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5, conducted RF disturbances IEC 61000-4-6, conducted and radiated emissions CISPR 11
- Vibration Resistance
- 1 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on DIN rail
- Carbon Footprint Of The Distribution Phase [A4]
- 0.014005524357610438, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.027625247088581543
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 44 kg CO2 eq., 43.565450016476
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- 2 wires
- Marking
- CE
- Optical Interface Present
- false
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM5
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Typical Current Consumption
- 34 mA 5 V DC
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- Digital Inputs Configurable
- true
- Supply Voltage Ac 50 Hz
- 100-240 V
- Time Delay At Signal Change
- 0.1-0.1 ms
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 99 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 40.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED (green) for power supply, 1 LED (red) for power supply, 4 LEDs (green) for input status
Certificate AgencycULus, CSA, GOST-R, cULus, CSA, GOST-R, C-tick
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.06380714994773072, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3464712652197728
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Front Installation Possiblefalse
Network TypeAC
Power Dissipation In W1.08 W
Product Or Component Typediscrete input module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityNo
Software Versionv6.2.5-6
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint45 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Digital Outputs Configurablefalse
System Accessoryfalse
Short Circuit Protection Outputs Presentfalse
Supply Voltage Ac 60 Hz100-240 V
Pep CodeENVPEP1511026EN
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal12.5 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-60 °C with derating factor horizontal installation), -10-60 °C with derating factor horizontal installation), -10-60 °C with derating factor horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)-10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-60 °C with derating factor horizontal installation), -10-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 45.01735920308969
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityPacDrive LMC Pro, logic controller, PacDrive LMC Pro 2, motion controller, PacDrive LMC Eco
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C-40-70 °C
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 5 mA at 100...120 V AC, 11 mA at 200...240 V AC
- Input Filtering
- <= 25 ms configurable by software, <= 25 ms configurable by software, <= 30 ms hardware from state 1 to state 0, <= 30 ms hardware from state 1 to state 0, <= 40 ms hardware from state 0 to state 1, <= 40 ms hardware from state 0 to state 1, <= 25 ms configurable by software, <= 25 ms configurable by software, <= 30 ms hardware from state 1 to state 0, <= 30 ms hardware from state 1 to state 0, <= 40 ms hardware from state 0 to state 1, <= 40 ms hardware from state 0 to state 1
- Discrete Input Voltage Type
- AC
Discrete Input Number4 at 100...240 V AC, 4
Discrete Input Voltage100...240 V AC 100...240 V)
Input Voltage Limits100...240 V
