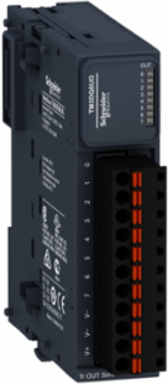

Schneider Electric TM3DQ8UG Modicon TM3 Discrete Output Module, 8 Transistor Outputs 24 V DC
Schneider Electric TM3DQ8UG Modicon TM3 Discrete Output Module, 8 Transistor Outputs 24 V DC
- MPN: TM3DQ8UG
- PPN: SCH-TM3DQ8UG
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$188.03/ EA
Description
This discrete output module from Schneider Electric is designed to enhance automation and control systems with its eight transistor outputs, each operating at 24 V DC. Perfectly suited for integration with various PLC and HMI setups, the Modicon TM3 offers reliability and precision in managing your equipment's operational outputs. With its compact design and efficient functionality, it plays a crucial role in streamlining your data acquisition efforts, making it an essential component for modern industrial applications.
Specifications
- Discrete Output Number
- 8
- Discrete Output Voltage
- 24 V DC transistor output
- Discrete Output Logic
- negative logic (sink)
- Maximum Leakage Current
- 0.1 mA transistor output
- Current Consumption
- 5 mA 5 V DC (off), 0 mA 24 V DC (off), 20 mA 24 V DC (on), 10 mA 5 V DC (on) via bus connector
- Maximum Cable Distance Between Devices
- <30 m unshielded cable transistor output
- Mounting Support
- top hat type TH35-15 rail IEC 60715, TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Depth
- 84.6 mm (3.33 in)
- Net Weight
- 0.76 kg (1.68 lb)
- Product Certifications
- CE, cULus, UKCA, RCM, EAC, cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m (80 MHz–1 GHz), 3 V/m (1.4–2 GHz), 1 V/m (2–3 GHz) EN/IEC 61000-4-3
- Resistance To Fast Transients
- 1 kV I/O EN/IEC 61000-4-4
- Ambient Air Temperature For Operation
- -10 to 35 °C vertical, -10 to 55 °C horizontal
- Relative Humidity
- 10–95% without condensation (operation and storage)
- Pollution Degree
- 2
- Storage Altitude
- 0 to 3000 m (0 to 9842.52 ft)
- Shock Resistance
- 15 gn 11 ms
- RoHS Compliance
- Pro-active compliance, toxic heavy metal free, mercury free, PVC free
- Country Of Origin
- Taiwan
Discrete Output Typetransistor
Discrete Output Current50 mA transistor output
Response Time450 µs turn-on/off
Maximum Voltage Drop<0.4 V
Electrical Connection11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs
Insulation Voltage500 V AC between output and internal logic
Height90 mm (3.54 in)
Width27.4 mm (1.08 in)
StandardsEN/IEC 61131-2
Resistance To Electrostatic Discharge8 kV air, 4 kV contact EN/IEC 61000-4-2
Resistance To Magnetic Fields30 A/m 50/60 Hz EN/IEC 61000-4-8
Surge Withstand1 kV I/O common mode DC EN/IEC 61000-4-5
Ambient Air Temperature For Storage-25 to 70 °C
IP Degree Of ProtectionIP20 with protective cover
Operating Altitude0 to 2000 m (0 to 6561.68 ft)
Vibration Resistance3.5 mm 5–8.4 Hz, 3 gn 8.4–150 Hz DIN rail and panel
Sustainable Offer StatusGreen Premium product
REACH SVHCFree of SVHC
