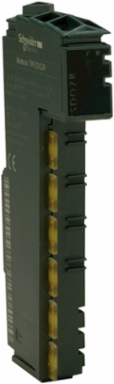

Schneider Electric TM5SDO4R Modicon TM5 Discrete Output Module, 4 Outputs, 5A Relay, IP20 Rated
- MPN: TM5SDO4R
- PPN: SCH-TM5SDO4R
CAD
$258.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 4 discrete outputs with relay discrete output. Its output voltage limits are 184 to 276V AC, 24 to 36V DC, and provides a maximum power dissipation of 2.3W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is equipped with NO/NC contact. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 and PacDrive LMC motion controllers and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Complementary Attributes
- Maximum Current Per Output Common
- 10 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electromagnetic Compatibility
- electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-41.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5conducted RF disturbances IEC 61000-4-6conducted and radiated emissions CISPR 11
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01575621490231174, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.031078402974654234
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 93 kg CO2 eq., 92.77827318323591
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Per Channel
- 5 A
- Electrical Durability
- 500000.0 cycles 5 A
- Marking
- CE
- Network Type
- AC/DC
- Power Dissipation In W
- 2.3 W
- Product Or Component Type
- discrete output module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 94 kg CO2 eq.
- Vibration Resistance
- 1 gn 8.4-150 Hz) on DIN rail3.5 mm 5-8.4 Hz) on DIN rail
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Digital Outputs Configurable
- false
- System Accessory
- false
- Short Circuit Protection Outputs Present
- false
- Supply Voltage Ac 60 Hz
- 230-230 V
- Pep Code
- ENVPEP1511026EN
- Pep Verification Date
- 2025-12-25
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 99 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 45.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyCSA, cULus, GOST-R, C-tick
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.07178304369119706, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.5147801733722444
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Electrical Connectionplug-in
Front Installation Possiblefalse
Mechanical Durability2.0E7 cycles
Optical Interface Presentfalse
Product AvailabilityStock - Normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM5
Shock Resistance15 gn 11 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Typical Current Consumption160 mA 5 V DC
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage30-30 V
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Digital Inputs Configurablefalse
Supply Voltage Ac 50 Hz230-230 V
Time Delay At Signal Change10-10 ms
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh201.48
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal12.5 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-60 °C with derating factor horizontal installation), -10-60 °C with derating factor horizontal installation), -10-60 °C with derating factor horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)-10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-60 °C with derating factor horizontal installation), -10-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 94.41167101817632
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibility2, PacDrive LMC Eco, PacDrive LMC Pro
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C-40-70 °C
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- discrete output module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Voltage
- 230 V AC 184...276 V)relay, 30 V DC 24...36 V)relay
- Output Voltage Limits
- 184...276 V, 24...36 V
- Discrete Output Type
- relay
Discrete Output Voltage TypeAC, DC
Discrete Output Number4
Maximum Current Per Output Common10 A
