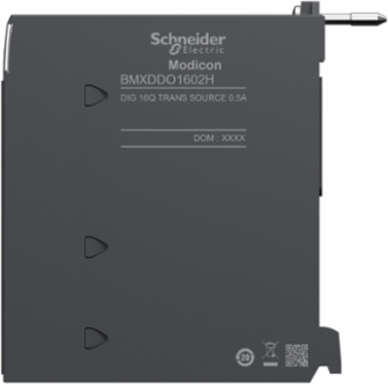

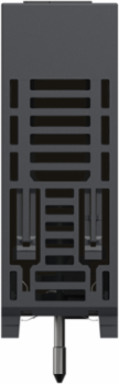

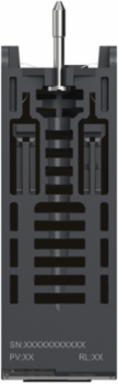

Schneider Electric BMXDDO1602H Modicon X80 Discrete Output Module 16 Outputs 24V DC for Severe Environments
- MPN: BMXDDO1602H
- PPN: SCH-BMXDDO1602H
CAD
$723.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 4W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 392285 hours of MTBF. It is an IP20 rated product. It weighs 0.12kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Complementary Attributes
- Maximum Voltage Drop
- <1.2 V at state 1, <1.2 V at state 1<1.2 V at state 1, <1.2 V at state 1
Maximum Current Per Module10 A
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Protection Type
- external fuse reverse polarity protection, short-circuit protection, overload protection, overvoltage protection
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0223605818, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0455336727, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 13 kg CO2 eq., 13.4007088643
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mtbf Reliability
- 410000 H
- Product Or Component Type
- discrete output module
- Range Of Product
- Modicon X80
- Reverse Polarity Protection
- reverse mounted diode
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 36 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential, In %
- 3
- Package Weight(Lbs)
- 154.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
Load Impedance Ohmic> 48 Ohm, > 48 Ohm
Voltage Detection Threshold< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, > 18 V DC preactuator at state 0, > 18 V DC preactuator at state 0
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3034265455
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.8486181818
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.625 A
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv5.9.4
Switching Frequency0.5/LI² Hz
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Water Use (M3 Eq) Manufacturing [A1-a3]60579.6
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint35.6206478461
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete output module
Range Of ProductModicon X80
