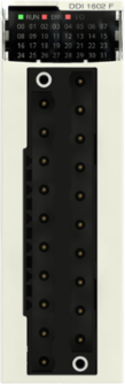

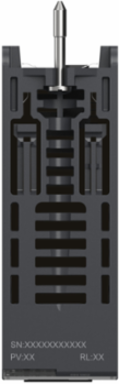

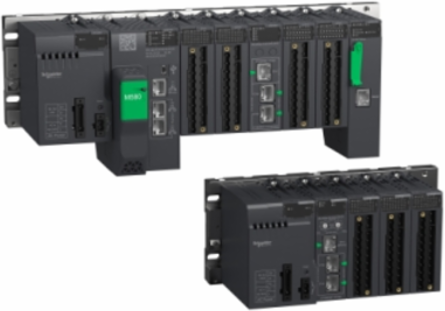

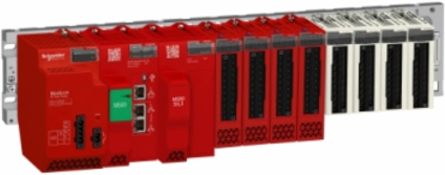

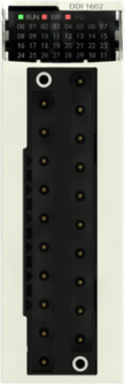

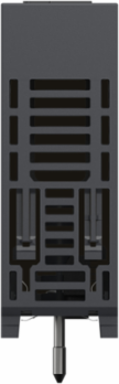

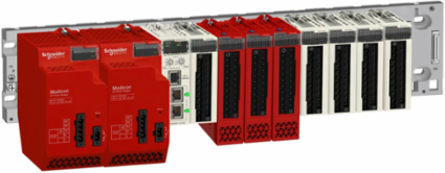

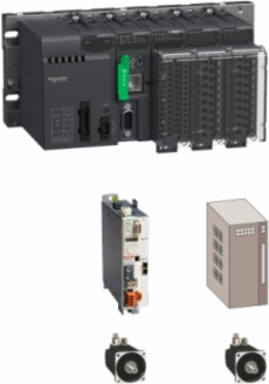

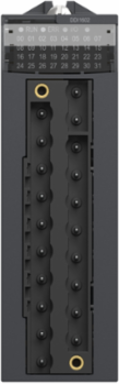

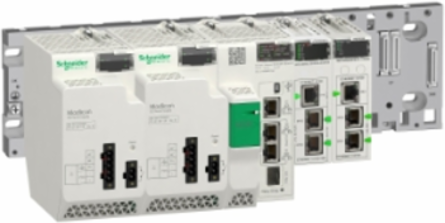

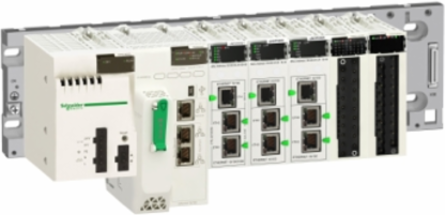

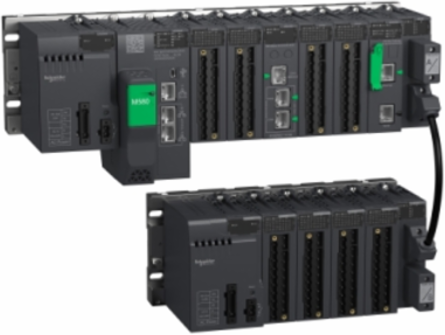

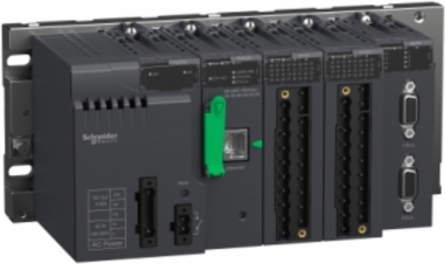

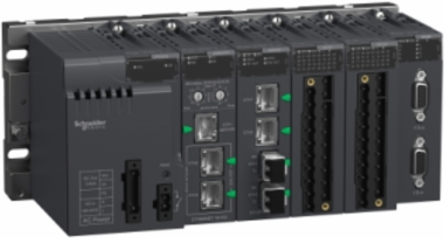

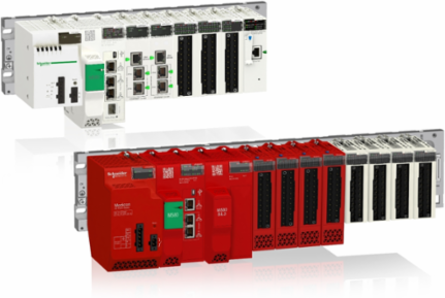

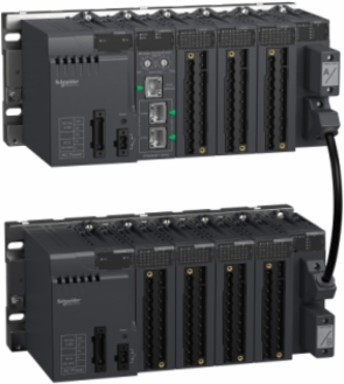

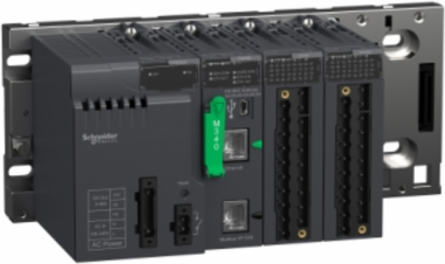

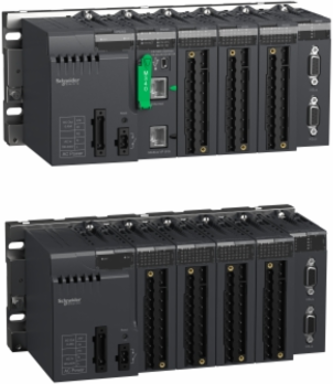

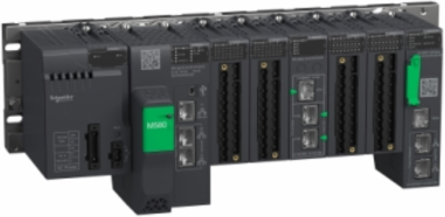

Schneider Electric BMXDDI1602 Modicon X80 Discrete Input Module 16 Inputs 24V DC

  • MPN: BMXDDI1602
  • PPN: SCH-BMXDDI1602
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $499.58

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon X80 Discrete Input Module 16 Inputs 24V DC

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, Singapore, United States
    Depth86 mm

    Complementary Attributes

    Dc Maximum Filtering Time7 ms

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Current Consumption<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
    Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
    Voltage Detection Threshold< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2679380606, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 19.2932242424
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Current State 0 Guaranteed<= 1.5 mA<= 1.5 mA
    Dc Maximum Filtering Time7 ms
    Device ApplicationIndustrial Application
    Environmental Characteristicfungal spore resistant class 3B2
    Isolation Between Channels And Bus1500 V for 1 minute
    Power Dissipation In W2.5 W
    Product Or Component Typediscrete input module
    Range Of ProductModicon X80
    Sensor Power Supply19-30 V
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint32 kg CO2 eq.
    Vibration Resistance3 gn
    Voltage State 1 Guaranteed>= 11 V>= 11 V
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh19.71
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Height Nominal103.7 mm
    Certificate AgencyIEC 61131-2
    Package Weight(Lbs)144.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    MarkingCE, UKCA, cULus, EAC, RCM
    Carbon Footprint Of The Distribution Phase [A4]0.0197453091, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.04020809700000001
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 12.850698324
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current State 1 Guaranteed>= 2 mA>= 2 mA
    Dc Typical Filtering Time4 ms
    Dielectric Strength1500 V AC 50/60 Hz 1 minute, primary/secondary
    Hot Swapping Fallbackyes
    Mtbf Reliability775000 H
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Shock Resistance30 gn
    Sustainable PackagingYes
    Typical Current Consumption76 mA DC
    Voltage State 0 Guaranteed< 5 V< 5 V
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Width Nominal32 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180

    Environment Attributes Main

    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint32.4718140331
    Ambient Air Temperature For Storage-40-85 °C-40-85 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typediscrete input module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001419
    ETIM 9EC001419

    Surge Protection And Filtering Attributes

    Dc Typical Filtering Time4 ms

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Current3.5 mA at 24 V DC
    Discrete Input Numberisolated conforming to IEC 60947-5-2 at 24 V DC16
    Input Impedance6800 Ohm
    Input Wiring Mode2 or 3 wires
    Discrete Input Logicpositive logic (sink)
    Discrete Input Voltage24 V DCisolated
    Input Protection Typereverse polarity protection
    Paralleling Of Inputsyes
