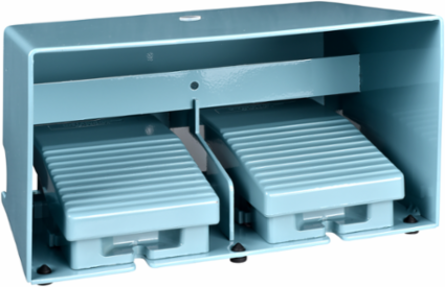

Schneider Electric XPEM6210D Harmony XPE Double Foot Switch, Metal, IP66, 2 Steps, Blue
- MPN: XPEM6210D
- PPN: SCH-XPEM6210D
CAD
$999.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance in demanding environments, the Harmony XPE double foot switch from Schneider Electric combines durability with practical design. Made from metal and rated at IP66, this switch is capable of withstanding harsh conditions, making it suitable for various industrial applications where reliability is critical. Featuring two distinct steps, it allows users to operate machinery or equipment with ease and efficiency, promoting enhanced safety and control in automated processes. This foot switch is an essential component for ensuring seamless operation in automation and safety connectivity systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A, 240 V, AC-15, A300; 0.27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-1
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1, VDE 0660-200
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3, NF C 93-050 method A
- Contacts Type and Composition
- 2 NO + 3 NC
- Cable Entry
- 2 entries tapped for Pg 16 cable gland
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Vibration Resistance
- 15 gn (10–500 Hz) IEC 60068-2-6
- IP Degree of Protection
- IP66 IEC 60529; IP669 NF C 20-010
- Protective Treatment
- TC
- Product Certifications
- FIMKO, CSA
- Device Short Name
- XPEM
Rated Insulation Voltage500 V EN/IEC 60947-1, NF C 20-040 group C, VDE 0110 group C; 300 V UL 508, CSA C22.2 No 14
Rated Operational Power in W10 W DC-13 60 cyc/mn, 5,000,000 cycles, 24 V; 4 W DC-13 60 cyc/mn, 5,000,000 cycles, 120 V; 7 W DC-13 60 cyc/mn, 5,000,000 cycles, 48 V
Mechanical Durability15,000,000 cycles
Contact Operation2 steps + 1 step
Connections - TerminalsScrew clamp terminal, ≤ 1 x 2.5 mm² or ≤ 2 x 1.5 mm² with or without cable end
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Shock Resistance150 gn NF E 09-031; 20 gn IEC 60068-2-27
Overvoltage CategoryClass I EN/IEC 61140, NF C 20-030
MaterialMetal
ColorBlue
StandardsNF E 09-031
Foot Switch TypeDouble foot switch
