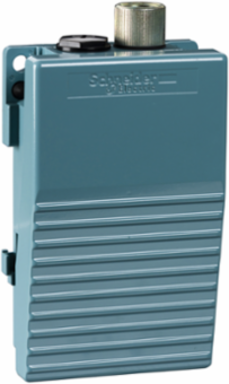

Schneider Electric XPEM111H2 Harmony XPE Metal Foot Switch, IP66, 1-Step, 2 Contacts, Blue
- MPN: XPEM111H2
- PPN: SCH-XPEM111H2
CAD
$301.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This foot switch from Schneider Electric is engineered for reliability and ease of use in various automation and control applications. With an IP66 rating, it is designed to withstand dust and water, making it suitable for demanding environments. The metal construction ensures durability while the one-step activation with two contacts allows for intuitive operation. The striking blue color adds a visual element that can enhance visibility in the workplace, making it an essential component for safety and connectivity in industrial settings.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 2 NC + NO
- Range Of Product
- Harmony XPE
- Product Or Component Type
- foot switch
- Material
- metal
- Trigger Mechanism
- without trigger mechanism
Colourblue
Contact Operation1 step
Foot Switch Typesingle foot switch
Device Short NameXPEM
Complementary
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Mechanical Durability
- 15000000 cycles
- Cable Entry
- 2 entries tapped for Pg 16 cable gland
- Net Weight
- 1.2 kg
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
Positive Openingwith IEC 60947-5-1 appendix K
Rated Operational Power In W10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Environment
- Product Certifications
- FIMKO || CSA
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- IEC 60947-5-1 || VDE 0660-200
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass I IEC 61140 || class I NF C 20-030
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Protective TreatmentTC
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
