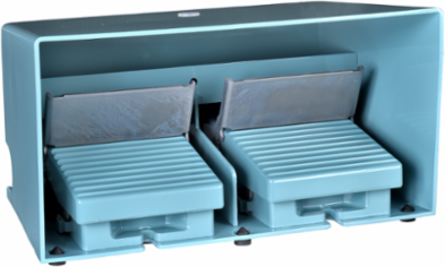

Schneider Electric XPEM5100D Harmony XPE Double Foot Switch, IP66, Metal, 2 Contacts (1NO+NC), Blue
Schneider Electric XPEM5100D Harmony XPE Double Foot Switch, IP66, Metal, 2 Contacts (1NO+NC), Blue
- MPN: XPEM5100D
- PPN: SCH-XPEM5100D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$905.49/ EA
Description
This Harmony XPE double foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines. It features 2 x (1 NC + 1 NO) contacts. Its protective cover makes it ideal for issuing a safety start instruction for potentially dangerous machines, avoiding the risk of accidental operation, either by human action or by falling objects. It incorporates snap action contacts with positive opening operation. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It is supplied in metal case blue painted. It is designed for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run.
Specifications
Environment
- Product Certifications
- FIMKO || CSA
- Standards
- NF E 09-031
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP669 IEC 60529
Overvoltage Categoryclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Terminals Description Iso N°2
- (21-22)NC || B || (13-14)NO
- Positive Opening
- with IEC 60947-5-1 appendix K
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
- Mechanical Durability
- 15000000 cycles
- Rated Operational Power In W
- 10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
Net Weight6.07 kg
[Ie] Rated Operational Current3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage500 V 3)IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
Cable Entry2 entries tapped for Pg 16 cable gland
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Specifications
- Range Of Product
- Harmony XPE
- Material
- metal
- Contacts Type And Composition
- 2 x (1 NC + 1 NO)
- Contact Operation
- 1 step
- Foot Switch Type
- double foot switch
Product Or Component Typefoot switch
Trigger Mechanismwith trigger mechanism
Colourblue
Provided Equipmentcover
Device Short NameXPEM
