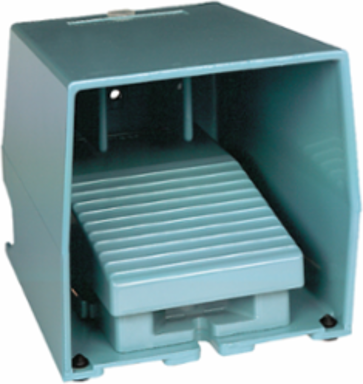

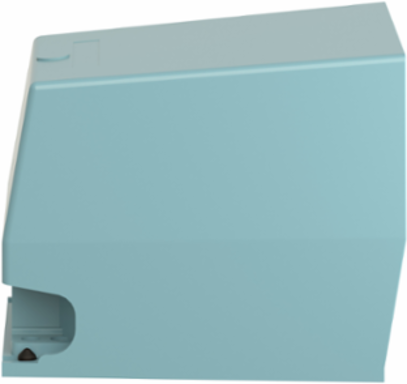

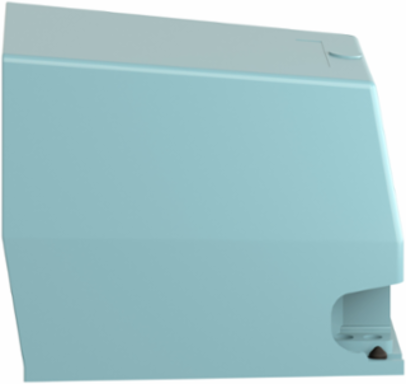

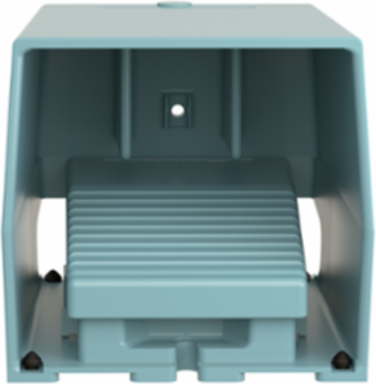

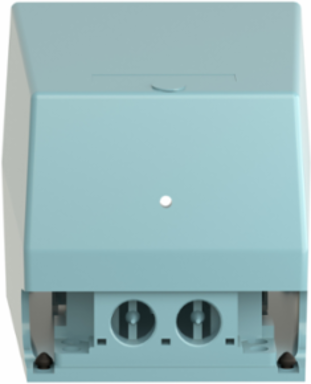

Schneider Electric XPEM611 Harmony XPE Single Foot Switch, 2 Steps, IP66, Metal, Blue

MPN: XPEM611
PPN: SCH-XPEM611

$518.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XPEM611 is a single foot switch. Its degree of protection is IP66. It has a cover, metallic material, blue color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Harmony XPE
Material	metal
Contacts Type And Composition	2 NC + 2 NO
Contact Operation	2 steps
Foot Switch Type	single foot switch

Product Or Component Type	foot switch
Trigger Mechanism	without trigger mechanism
Colour	blue
Provided Equipment	cover
Device Short Name	XPEM

Complementary

Short-Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1 \|\| 10 A cartridge fuse gG VDE 0660-200
Net Weight	2.42 kg
[Ie] Rated Operational Current	3 A, 240 V, AC-15, A300 \|\| 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage	500 V 3)IEC 60947-1 \|\| 500 V 3)NF C 20-040 group C \|\| 500 V 3)VDE 0110 group C \|\| 300 VUL 508 \|\| 300 VCSA C22.2 No 14
Cable Entry	2 entries tapped for Pg 16 cable gland
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3 \|\| 25 MOhm NF C 93-050 method A

Positive Opening	with IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminal, <= 1 x 2.5 mm² with or without cable end \|\| screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability	15000000 cycles
Rated Operational Power In W	10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C \|\| 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C \|\| 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C

Environment

Product Certifications	FIMKO \|\| CSA
Standards	NF E 09-031
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	150 gn NF E 09-031 \|\| 20 gn IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP669 IEC 60529
Overvoltage Category	class I IEC 61140 \|\| class I NF C 20-030

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
China Rohs Regulation	X

Mercury Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
