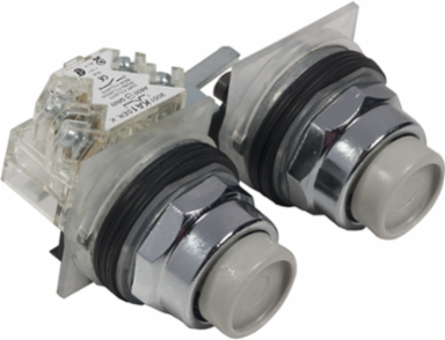

Schneider Electric 9001KR11UH1 Double-Headed Push Button 30 mm Metal Flush with Mechanical Interlocking

MPN: 9001KR11UH1
UPC: 785901033288
PPN: SCH-9001KR11UH1
UNSPSC: 39122216

$210.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The double-headed push button from Schneider Electric exemplifies exceptional design and functionality, tailored for automation and control applications. With a 30 mm diameter, this metal flush button features a mechanical interlocking mechanism that enhances operational safety and reliability. Ideal for environments requiring precise control, its robust construction ensures durability and consistent performance, making it a valuable addition to any control panel setup. This component not only meets the needs of modern automation systems but also offers ease of integration with existing installations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Complementary Attributes

Ie Rated Operational Current	10 A, AC-15, 10 A, DC-13

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	flushwhite flush, green flush, yellow flush, black flush, red flush, orange flush, blue flush
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	standard
Device Short Name	K
Light Source	without
Mounting Diameter	30 mm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001K
Sustainable Packaging	Yes
Cap/Operator Or Lens Colour	7 colours choice
Customs Code	8536509035

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, CE, UL listed file E42259 CCN NKCR, CSA LR 25490 class 3211 03
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Contacts Type And Composition	1 C/O
Light Block Supply	without supply
Mechanical Interlocking	with mechanical interlocking
Operator Additional Information	metal guard
Product Or Component Type	double-headed push-button
Returnability	No
Type Of Operator	stay put
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Nema Degree Of Protection	NEMA 3R/6/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN

General Attributes

Product Or Component Type	double-headed push-button

Range Of Product	Harmony 9001K

ETIM

ETIM 8	EC001028
ETIM 10	EC001028

ETIM 9	EC001028

Contractual Warranty Attributes

Warranty	18 months

Overview Attributes

Device Presentation	complete product
