Schneider Electric ZB5AL7341 Harmony XB5 Double Head Push Button 22mm, IP66/IP69K, Spring Return

  • MPN: ZB5AL7341
  • PPN: SCH-ZB5AL7341
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $44.42

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

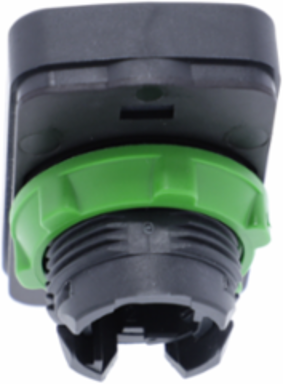

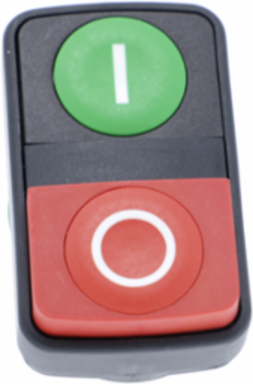

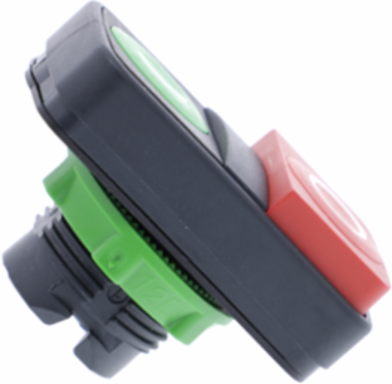

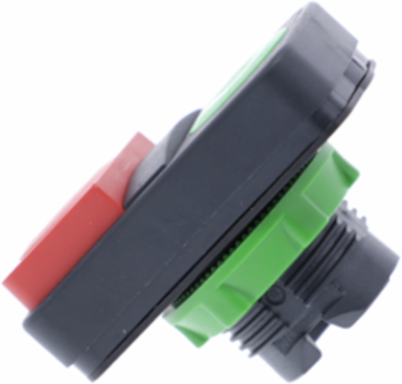

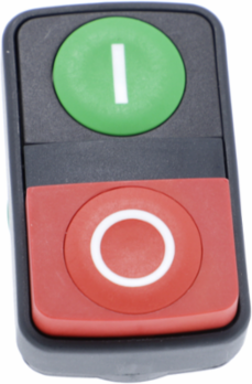

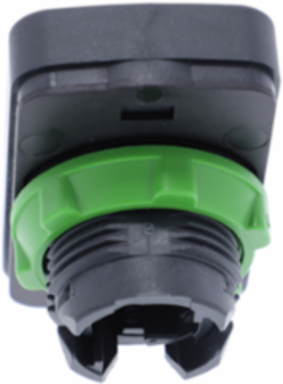

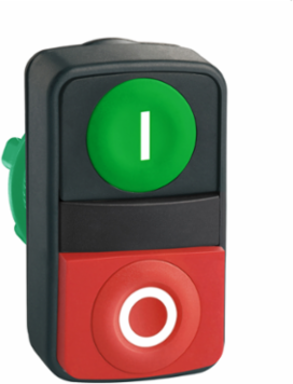

    This Harmony XB5, double head has 1 red and 1 green button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France, United States

    Physical Attributes

    Color Of Marking
    white/white, white marking when green, red or black caps, black marking when white caps

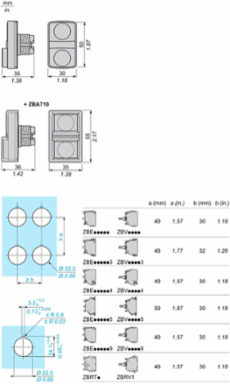

    Cad Overall Height
    50 mm
    Cad Overall Depth35 mm
    Cad Overall Width30 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Operator Profile
    green flush, I white), red projecting, O white), 1 flush - 1 projecting push-buttons
    Color Of Marking
    white/white, white marking when green, red or black caps, black marking when white caps
    Certificate Agency
    CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.04202860408494587
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.2 kg CO2 eq., 0.17233784694803106
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    25.26
    Stock Policy
    2
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Average Percentage Of Recycled Plastic Content
    6 %
    Compatibility Code
    ZB5
    Electrical Shock Protection Class
    class II conforming to IEC 60536
    Head Type
    standard
    Marking
    I-O
    Mounting Diameter
    22 mm
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Sustainable Packaging
    Yes
    Type Of Operator
    spring return
    Operator Profile 1 Color Of Marking
    white
    Pep Code
    "ENVPEP2303008EN"
    Pep Verification Date
    2024-03-24
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; APAC
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; APAC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeC3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting, SF2 2 single front mounting, SR2 2 single rear mounting
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Operator Profile 1 Cap Operator Or Lens Colorred
    Carbon Footprint Of The Distribution Phase [A4]0.008119283758000759, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.006130632943728771, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Future Imap19.51
    Stocking FlagN
    Weee ApplicabilityComponent
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2303008EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content29 %
    Bezel Materialdark grey plastic
    Device Short NameZB5
    Group Of Productflush/proj marked
    Main Groupdouble head
    Mechanical Durability1000000 cycles
    Operators Descriptiongreen ''I'' - red ''O''
    Product Or Component Typehead for double-headed push-button
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headrectangular
    Station NameXALD 1 cut-out
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Operator Profile 1 MarkingO
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
    Cap/Operator Or Lens Colourgreen/red
    Package Weight(Lbs)26.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP69K IEC 60529
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2303008EN
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    "ENVPEP2303008EN"
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
    Recycled Metal Content At Cr Level29 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.22861636773470645
    Environmental Disclosure"ENVPEP2303008EN"
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2024-03-24
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    head for double-headed push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC000221
    ETIM 9EC000221

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes
