Tripp Lite B127A111BDTH DisplayPort to HDMI over Cat6 Extender Kit, Transmitter/Transceiver - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
- MPN: B127A111BDTH
- UPC: 037332263988
- PPN: TRP-B127A-111-BDTH
CAD
$446.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DisplayPort to HDMI over Cat6 Extender Kit, Transmitter/Transceiver - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA
Features

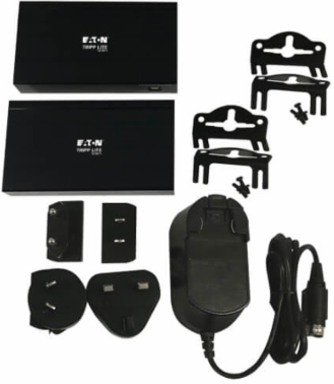

- Includes transmitter and transceiver units
- External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A); includes 4 international plug adapters (North America, Europe, U.K. and Australia)
- Mounting hardware included
Documentation & Downloads
Specifications
Dimensions
| Transmitter Unit Dimensions | 2.7 x 11.5 x 6.24 in |
|---|
| Receiver Unit Dimensions | 2.7 x 11.5 x 6.24 in |
|---|
Material
| Material | Metal |
|---|---|
| Form Factor | Box; Rackmount; Wall-mount |
| Color | Black |
|---|
Compliance
| Product Warranty | 1-year limited warranty |
|---|
Reference
| Product Type | Extender Kit |
|---|
| Recommended Cabling | 24AWG Solid Wire Cat6 |
|---|
Performance
| Max Supported Video Resolution | 3840 x 2160 @ 60Hz |
|---|---|
| Chroma Subsampling | 4:4:4 |
| Transmission Distance | 230 ft; 400 ft with signal booster |
| Range Extension with Booster | Yes |
| DisplayPort Specification | 1.2a |
| Technology | Cat6; HDMI; PoC |
| Video Output | HDMI (Female) |
| Number of Displays | 2 |
| AC Power Adapter Output | 24V / 1A |
| Receiver Power Source | Power Over Cable |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| HDR Support | No |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| Maximum Distance with Booster | 400 ft |
| Audio Specification | Pass-through LPCM 2.0/5.1/7.1 |
| HDCP Specification | 2.2 |
| Video Input | DisplayPort (Female) |
| Number of Monitors Supported | 1 |
| AC Power Adapter Input | 100-240V / 50/60Hz / 0.6A |
| Power Source | Transmitter or Receiver (Included) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-85% non-condensing |
