Tripp Lite B127-002-D2H 2-Port DisplayPort to HDMI over Cat6 Splitter/Extender Kit with Power over Cable - 4K @ 60 Hz, 125 ft. (38 m), TAA
Tripp Lite B127-002-D2H 2-Port DisplayPort to HDMI over Cat6 Splitter/Extender Kit with Power over Cable - 4K @ 60 Hz, 125 ft. (38 m), TAA
- MPN: B127-002-D2H
- UPC: 037332239020
- PPN: TRP-B127-002-D2H
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$402.75/ EA
Description
2-Port DisplayPort to HDMI over Cat6 Splitter/Extender Kit with Power over Cable - 4K @ 60 Hz, 125 ft. (38 m), TAA
Features
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
- Compatible with latest HDMI standards, including 4:4:4 subsampling for HDR televisions
- Plug-and-play operation with no software required for easy, immediate installation
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
- DP to HDMI Splitter for Digital Signage or Extending Video in Schools or Trade Show Booths
- Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
- Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
- Plug-and-Play Operation for Quick Setup and Immediate Use
- TAA-Compliant for GSA Schedule Purchases
Specifications
Features & Specifications
- Max Supported Video Resolution
- 4K x 2K (3840 x 2160) @60Hz
- HDMI Specification
- 2.0
- Audio Specification
- True uncompressed 7.1 Channel, DTS-HD & Dolby-TrueHD digital audio
- Recommended Category Cable
- Solid Wire Cat6 Cables (Tripp Lite's N202-Series)
- Power Over Cable (PoC) Support
- Yes
- Chroma Sub Sampling
- 4:4:4
Displayport Specification1.2a
HDCP Specification2.2
Driver RequiredNo
EDID CompatibleYes
TechnologyA/V over IP; Cat6; DisplayPort; HDMI; HDR
Certifications
- Certifications
- Tested to CE, FCC, REACH, RoHS

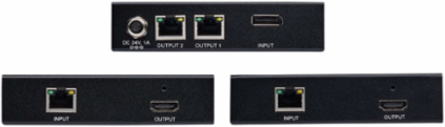

Connections
- Ports
- 2
- Side A - Connector 2
- DISPLAYPORT (FEMALE)
- Side B - Connector 2
- RJ45 (FEMALE)
Side A - Connector 1(2) RJ45 (FEMALE)
Side B - Connector 1HDMI (FEMALE)
Physical
- Color
- Black
- Rackmountable
- Yes
- Receiver Unit Weight (lbs.)
- 0.45
- Transmitter Unit Weight (lbs.)
- 0.45
Material of ConstructionMetal
Receiver Unit Dimensions (hwd / in.)1.06 x 4.53 x 2.46
Transmitter Unit Dimensions (hwd / in.)1.06 x 4.53 x 2.46
Unit Packaging TypeBox
User Interface, Alerts & Controls

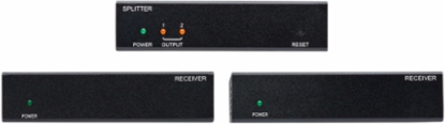

- LED Indicators
- Tx: x1 Green (Power), x2 Orange (Output 1, Output 2); Tx RJ45 port: x2 Green (Connected), x2 Orange (Activity) (x2) Rx: x1 Green (Power); Rx RJ45 port: Green (Connected), Orange (Activity)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 125; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 24V/1A
- External Power Supply Plug(s)
- AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
External Power Supply Input Specs (V / Hz / A)100-240V~50/60Hz, 0.6A
External Power Supply Cord Length (ft.)4.5
External Power Supply CertificationsCCC; CE; FCC; GS; TUV; UL; cUL
Communications
- Signal Range (ft.)
- 125
Environmental
- Operating Temperature Range
- 32 to 104°F (0 to 40°C)
- Relative Humidity
- 0% to 85% RH, Non-Condensing
Storage Temperature Range5 to 122°F (-15 to 50°C)
Overview
- UPC Code
- 037332239020
Special Features
- HDR Support
- Yes
Warranty
- Product Warranty Period (Worldwide)
- 1-year limited warranty
Downloads
