Documentation & Downloads

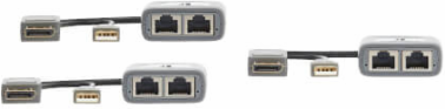

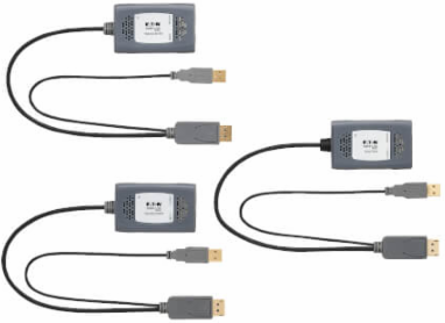

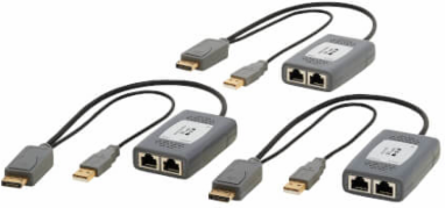

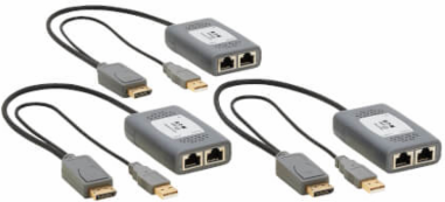

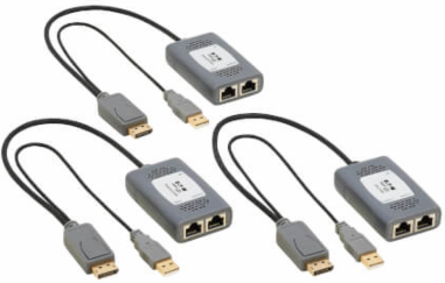

Tripp Lite B127U002PDPD2 2-Port DisplayPort over Cat6 Extender Kit, Pigtail Transmitter/2x Receivers, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA
- MPN: B127U002PDPD2
- UPC: 037332281180
- PPN: TRP-B127U-002-PDPD2
CAD
$434.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-Port DisplayPort over Cat6 Extender Kit, Pigtail Transmitter/2x Receivers, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA
Features
- Pigtail transmitter/splitter and two pigtail receivers included
- Daisy-chainable for extended distance installations
Documentation & Downloads
Specifications
Material
- Housing Material
- Plastic
- Color
- Black
Cable JacketPVC
Performance
- Max Video Resolution
- 3840 x 2160 (4K) @ 60 Hz
- Chroma Subsampling
- 4:2:0; 4:4:4
- Transmission Distance
- 230 ft (70 m)
- Video Input
- DisplayPort (Male)
- Monitors Supported
- 2
- DisplayPort Specification
- 1.4
- Power Source
- USB
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0–85% non-condensing
Color Depth36-bit Deep Color
HDR SupportYes
TechnologyCat6; DisplayPort; USB
Video OutputDisplayPort (Male)
HDCP1.4; 2.2
Daisy-chainableYes
Recommended Cable24 AWG Cat6
Storage Temperature5° to 122°F (-15° to 50°C)
Dimensions
- Form Factor
- Pigtail
- Cable Outer Diameter
- 4.2 mm
Wire Gauge28 AWG
Reference
- Warranty
- 1-year limited
