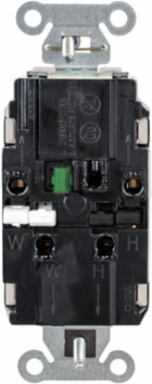

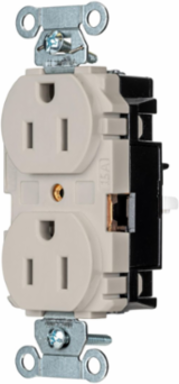

Hubbell Wiring Device-Kellems BR15STLA EdgeConnect Duplex Receptacle, 2-Pole 3-Wire, 15A 125V, Screwless Terminal, Light Almond
- MPN: BR15STLA
- UPC: 783585727721
- PPN: HBL-BR15STLA
- UNSPSC: 39121406
CAD
$8.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Commercial Grade, 2-Pole 3-Wire, 15A 125V, 5-15R, Screwless Terminal, Light Almond
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- EdgeConnect™ Technology, Screwless Termination
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Terminal Type
- Screwless Termination
- Operating Temperature Range
- -40 C to 75 C
- Mounting Type
- Screw Mount
- Type
- Standard Duplex
- Material Mounting Strap
- Galvanized Steel
- Material Mounting Screws
- Plated Steel
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Standard
- UL Listed to UL498 File No. E2186; Certified to CSA 22.2 No. 42 File 285; NEMA WD-6 Compliant
- Series
- EdgeConnectTM Series
Voltage125 V
Number of Wires3-Wire
Dielectric StrengthWithstands 2,000 V minimum
NEMA Rating5-15R
Wire Size#14 AWG to #10 AWG
MaterialThermoplastic/C
Material Ground ContactCopper Alloy
ColorLight Almond
Flammability RatingUL 94 V-2
Country of OriginCN
