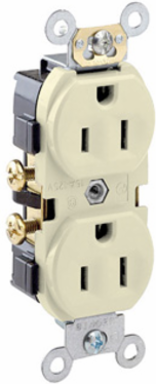

Leviton CR15-T 15 Amp Duplex Receptacle Outlet, Commercial Grade, NEMA 5-15R, Self-Grounding
Leviton CR15-T 15 Amp Duplex Receptacle Outlet, Commercial Grade, NEMA 5-15R, Self-Grounding
- MPN: CR15-T
- UPC: 078477274903
- PPN: LEV-CR15-T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.79/ EA
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Steel 8-32
- Strap Material
- Zinc-Plated Steel
ColorLight Almond
Ground ClipsBrass-Plated
Line ContactsBrass Double Wipe .031 Thick
Terminal ScrewsSteel 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- United States
RoHS CompliantTrue
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
Feature 4Indented Face
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
