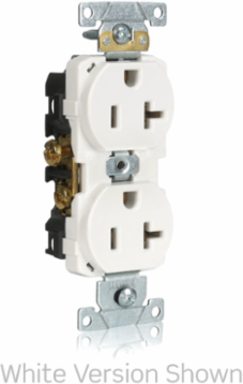

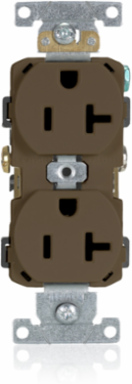

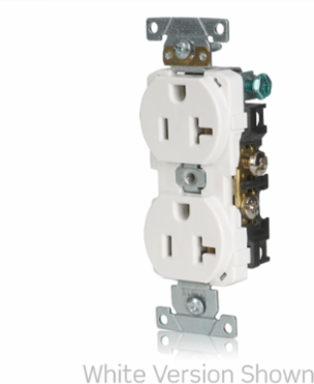

Leviton CR020 20 Amp Self-Grounding Duplex Outlet, Commercial Grade, NEMA 5-20R, 125 Volt
Leviton CR020 20 Amp Self-Grounding Duplex Outlet, Commercial Grade, NEMA 5-20R, 125 Volt
- MPN: CR020
- UPC: 078477815465
- PPN: LEV-CR020
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$5.48/ EA
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-2 WD-6
Applicable StandardsUL 498| Fed Spec W-C-595G| CSA C22.2 No. 42
NOM057
Material Specifications
- Body Material
- Nylon
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Double Wipe .031 Thick
- Yoke
- Zinc-Plated Steel
Face MaterialNylon
Grounding ScrewSteel 8-32
Terminal ScrewsSteel 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.14-10 AWG
TerminationSide Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Color
- Brown
- Feature
- Smooth Face
- Standards and Certifications
- UL/CSA
- Warranty
- 10-Year Limited
Device TypeDuplex Receptacle Outlet
GradeCommercial Specification Grade
Strap MaterialSteel
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Wire
- 3
Current LimitingFull Rated Current
GroundingSelf-Grounding
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
