Leviton

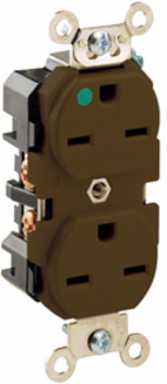

Leviton 8600 15 Amp Hospital Grade Duplex Receptacle Outlet, 250 Volt, Brown, Self-Grounding

15 Amp Hospital Grade Duplex Receptacle Outlet, 250 Volt, Brown, Self-Grounding
15 Amp Hospital Grade Duplex Receptacle Outlet, 250 Volt, Brown, Self-Grounding
  • MPN: 8600
  • UPC: 078477818695
  • PPN: LEV-8600

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$36.41/ EA

Description

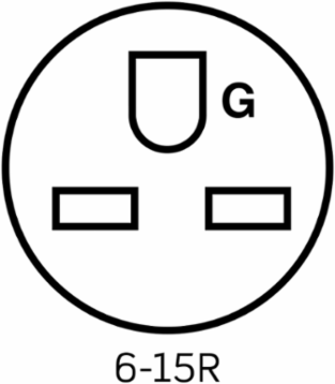

Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Brown

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL Fed Spec WC-596
File E13399
Warranty
10-Year Limited
CSA C22.2 No. 42File 152105
NOM057
UL498HGFile E13399

Material Specifications

Body Material
Nylon
Color
Brown
Ground Clips
Nickel-Plated Brass
Line Contacts
Nickel-Plated Brass Triple-Wipe .031 Thick
Terminal Screws
Nickel-Plated Brass 10-32
Clamp NutsNickel-Plated Brass
Face MaterialNylon
Grounding ScrewNickel-Plated Brass 8-32
Strap MaterialBrass
YokeNickel-Plated Brass

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Specifications

Country of Origin
Please Contact Customer Service
RoHS CompliantFalse

Product Features

Device Type
Duplex Receptacle Outlet
GradeHeavy-Duty Hospital Grade

Environmental Specifications

Flammability
Rated V-2 per UL94
Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage
15 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Voltage
250 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3

AC Horsepower Ratings

Horsepower Rating
1-1/2 HP

Downloads
